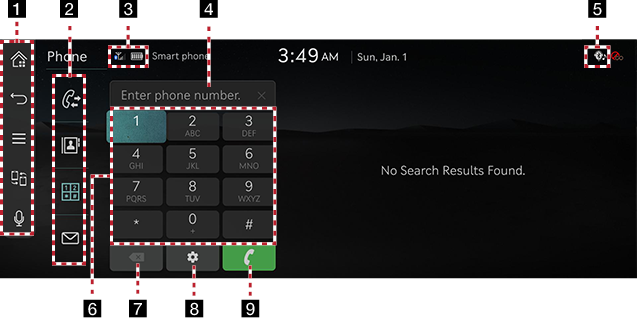

Using dial screen

Press [Phone] > [J] on the home screen.

1

Moves to the home screen.

Moves to the home screen or the previous screen.

Displays pop-up menu of each mode.

Change to another connected device. (Displays the icon when there is more than one connected device.)

P

Moves to the voice recognition screen.

2 Call history (I)

Moves to the call history screen.

Contacts (F)

Moves to the contacts screen.

Dial (J)

Moves to the dial screen.

Message (H)

Moves to the message screen.

3 Reception level icon ()

The reception level (sensitivity) of the calling area is specified in the bar graph.

Mobile battery icon ()

Specifies the remaining battery of mobile phone.

4 Number entrance window

Enter phone number or initial letter.

5 Bluetooth connection icon

Shows the connection status between Bluetooth phone and the head unit.

6 Keypad

Enter the phone number to call.

7Delete (N)

Deletes the entered phone number.

8 Settings (a)

Moves to Bluetooth settings screen.

9 Call (U)

• If there is a registered phone number, the call is connected.
• If there is no registered phone number, the most recent call number is entered.
