Name and function of each component

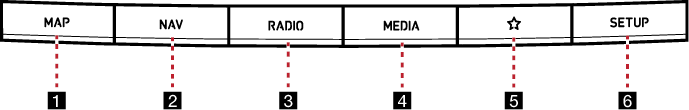

Head Unit

The image of this product may be different from the actual product.

1 MAP button

• Moves to the map screen showing the current position of vehicle.
• When the destination is set, the voice navigation starts on the map screen.

2 NAV button

• Moves to the navigation menu.
• Press and hold to move to the destination search screen.

3 RADIO button

• Activates radio mode.
• Each button press changes the mode in sequence of DAB (If equipped)/FM > AM > DAB (If equipped)/FM.
• Press and hold to move to the media selection screen.

4 MEDIA button

• Press this button to switch between the media selection screen and media play screen.
• Press and hold to move to the media selection screen.

5 K (Custom) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

6 SETUP button

• Moves to the settings screen.
• Press and hold to move to the general settings screen.

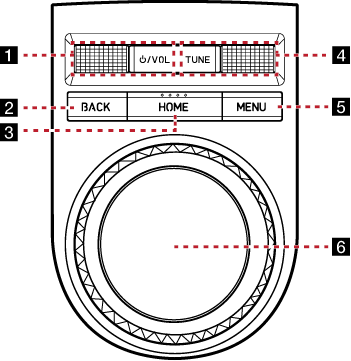

Front Seat Control Key

The image of this product may be different from the actual product.

1 :/VOL wheel button

• Press briefly to turn AV on/off.
• Press and hold to turn on or off the display and AV.
• Turn the wheel up/down to adjust the volume.

2 BACK button

• Press briefly to move to the previous screen.
• Press and hold to move to the home screen.

3 HOME button

• Press briefly to move to the home screen.
• Press and hold to move to the map screen.

4 TUNE wheel button

• Radio (DAB (If equipped)/FM): Turning the wheel up/down to change the searched station.
• Radio (AM): Turning the wheel up/down to increases/decreases the frequency by one step.
• Media/Voice memo: Search for a file by turning the wheel up/down. And, when the name of desired file is displayed, press the button to play the file.
• Navigation: Turn up/down to change the map scale on the map screen.

5 MENU button

• Displays a pop-up menu for each mode when pressed briefly.
• Turns on and off the split screen on the map when pressed and held.

6 Controller

• Use controller to move and select the menu.
• Use controller to change the map scale on the map screen.

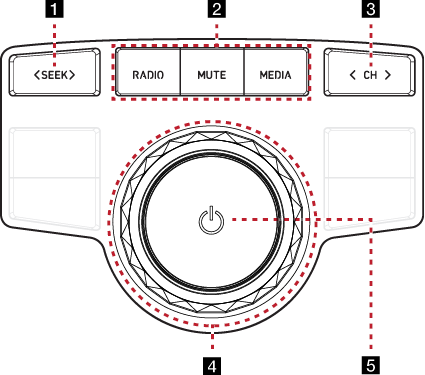

RRC (Rear Remote Control) - Option A

The RRC (Rear Remote Control) function keys differ depending on the selected option.

The image of this product may be different from the actual product.

1 A SEEK D button

Selects or searches the previous/next item in each mode.

2 RADIO button

Activates radio mode.

MUTE button

Activates or clears mute.

MEDIA button

Moves to the connected media playback screen.

3 A CH D button

Selects a preset radio station in DAB (If equipped)/FM or AM mode.

4 Controller

Turns the wheel left/right to adjust the volume.

5 : (Power) button

• Press briefly to turn AV on/off.
• Press and hold to turn on or off the display.

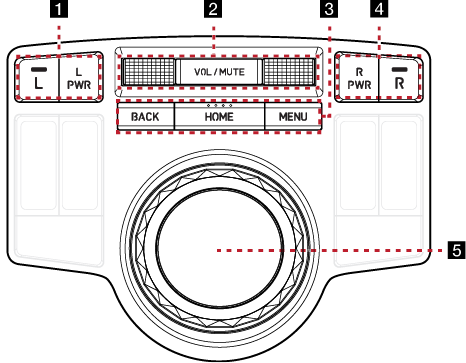

RRC (Rear Remote Control) - Option B

The RRC (Rear Remote Control) function keys differ depending on the selected option.

The image of this product may be different from the actual product.

1 L button

Press to use the rear remote control only for left monitor of rear seat.

L PWR button

• Press briefly to turn the left monitor of rear seat on/off.
• Press and hold to turn AV on/off.

2 VOL/MUTE button

• Turns the wheel up/down to adjust the volume.
• Press the wheel to turn mute on/off.

3 BACK button

Press to move to the previous screen.

HOME button

• Press to move to the home screen.
• Press and hold to move to the map screen.

MENU button

Press to display a pop-up menu for each mode.

4 R button

Press to use the rear remote control only for right monitor of rear seat.

R PWR button

• Press briefly to turn the right monitor of rear seat on/off.
• Press and hold to turn AV on/off.

5 Controller

Use controller to move and select the menu.

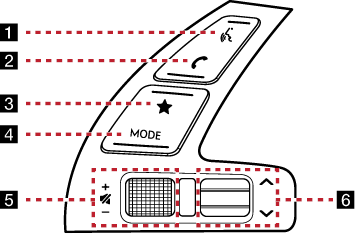

Steering Wheel Remote Control

The image of this product may be different from the actual product.

1 i (Voice Recognition) button

• When it is pressed shortly
• Activates voice recognition mode.
• When it is pressed and held
• Activates voice recognition mode of the connected phone projection device.
• Press and hold the button to cancel voice recognition.

2 W (Bluetooth Call) button

When it is pressed shortly

• Searches new Bluetooth phone or connects the registered phone if Bluetooth is not connected.
• If Bluetooth is connected,
• If selected in the call waiting screen, displays call history screen.
• If selected in call history screen, makes a call to last called number.
• If selected in phone entrance screen, enters the last call number.
• If selected in phone reception alert screen, answers the phone call.
• If selected in calling, ends the call.

When it is pressed and held

• When Bluetooth is connected, if selected in Bluetooth hand free waiting mode, redials.
• If selected in calling, ends the call.

3 L (Custom) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

4 MODE button

• When it is pressed shortly
• Selects a mode from Bluetooth audio, DAB (If equipped)/FM, AM, USB music, USB video, phone projection or sounds of nature.
• When it is pressed and held
• Moves to the mode button (steering wheel) settings screen.

5 J/I button

Turn the wheel up/down to adjust the volume.

f (MUTE) button

Press the wheel to turn mute on/off.

6 S/W button

• When it is pressed shortly
• Selects a preset radio station in DAB (If equipped)/FM or AM mode.
• In MEDIA mode, searches track, file or chapter.
• When it is pressed and held
• In DAB (If equipped)/FM mode, moves previous/next station based on the currently playing station.
• In AM mode, broadcasting are automatically searched.
• While USB mode activated, rewinds or fast forwards the file.
