Vehicle settings

The images displayed on this system may differ from actual ones.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Move to vehicle settings screen

On the home screen, press [Setup] > [Vehicle].

The vehicle settings screen is displayed.

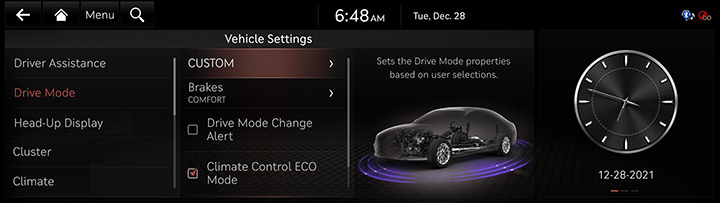

[CUSTOM]: Sets a personalized custom drive mode based on user selections.
[Brakes]: Sets the standard braking mode optimized for comfortable daily driving.
[Drive Mode Change Alert]: Selects change information display method in case of drive mode change.
[Climate Control ECO Mode]: ECO climate control can help increase driving range by reducing the heating and cooling power of the climate control system.

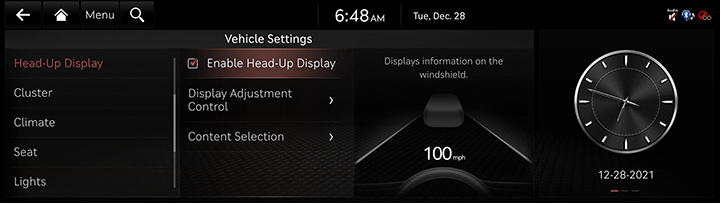

[Enable Head-Up Display]: Sets to show the head-up display on the windshield is available.
[Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
[Content Selection]: Sets the information to display on the heads-up display.

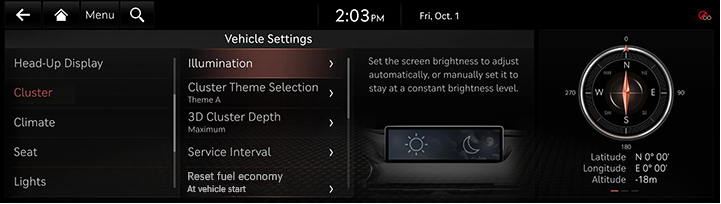

[Illumination]: Sets the screen brightness to adjust automatically, or manually set it to stay at a constant brightness level.
[Cluster Theme Selection]: Selects a cluster theme.
[3D Cluster Depth]: Enables 3D effects for the cluster.
[Service Interval]: Sets the service inspection period. When the period is reached, the alert is made.
[Reset fuel economy]: Selects when to reset the average fuel economy gauge.
[Content Selection]: Selects information to display on cluster.
[Cluster Voice Volume]: Adjusts the cluster voice volume.
[Oil Change Reminder]: Resets manually after oil change.
[Welcome Sound]: Provides an audible tone when the cluster turns on or off.
[Speedometer Subscale]: Displays the secondary speedometer scale underneath the primary scale.

,Note

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier.
If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.
Visibility may decrease if the user adjusts the screen brightness to dark in a bright environment.

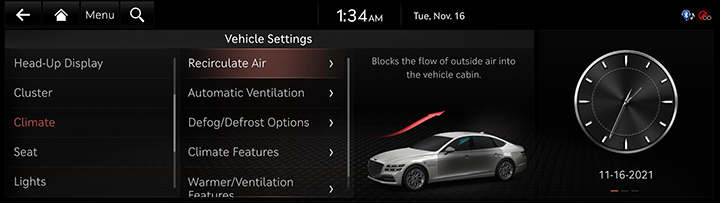

[Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
[Automatic Ventilation]: Switches the ventilation system to fresh air mode automatically after an extended use of recirculate air.
[Defog/Defrost Options]: Directs air to the windshield to reduce moisture on the windshield glass.
[Climate Features]: Activates the convenience functions for climate control.
[Warmer/Ventilation Features]: Sets the warmer/ventilation features.

[Seat Position Change Alert]: When the seat position changes, details of the change are shown with a seat image.
[Seat Switch Alerts]: Displays the information on the seat switch control and the changing of the seat position.
[Smart Posture Care]: Recommends a posture fitting the driver's body type and provides a clinical analysis for back health.
[Warmer/Ventilation Features]: Sets the heated/ventilated features.
[Seating Easy Access]: The seat/steering wheel are moved so the driver can more easily exit/enter the vehicle.
[Ergo-Motion Seat(Driver)]/[Ergo-Motion Seat(Passenger)]: Improve the feeling of drive and reduce the fatigue.

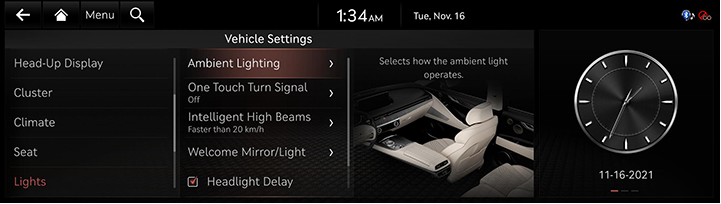

[Ambient Lighting]: Sets the interior mood lighting.
[One Touch Turn Signal]: Selects the number of blinks of turn signal by touching the turn signal lever.
[Intelligent High Beams]: Selects the vehicle speed at which the feature activates, or set to disable the feature.
[Welcome Mirror/Light]: The Welcome feature is enabled when the doors are unlocked.
[Headlight Delay]: When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.
[High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

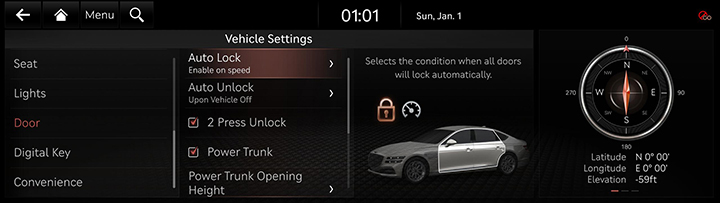

[Auto Lock]: Selects the timing for automatic locking all doors.
[Auto Unlock]: Selects the timing for automatic unlocking all doors.
[2 Press Unlock]: Press door unlock button of the key to unlock all doors.
[Power Trunk]: The power trunk button can be used to automatically open/close the trunk.
[Power Trunk Opening Height]: Selects the height the power trunk automatically moves.
[Smart Trunk]: Opens the trunk lid automatically when approaching the trunk with the smart key.
[Remote Window Control]: Enables/disables the remote window control function.

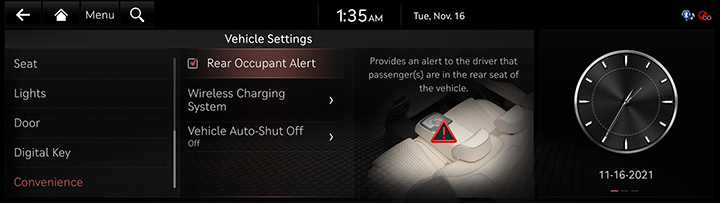

[Rear Occupant Alert]: Provides an alert to the driver that passengers are in the rear seat of the vehicle.
[Wireless Charging System]: Enables the wireless charging pad to be used with compatible devices.
[Vehicle Auto-Shut Off]: Selects the time to delay automatic shut off when the vehicle is parked with its engine on.
