Vehicle setting

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Move to vehicle setting screen

Press [Setup] > [Vehicle] on the home screen. Vehicle setting screen is displayed.

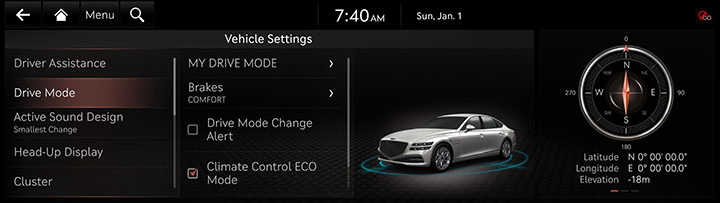

Drive Mode

1. Press [Drive Mode] on the vehicle settings screen.

2. Press the desired item.

• [MY DRIVE MODE]: Composes the optimal mode through combination of each system’s mode.
• [Brakes]: Sets the standard braking mode optimized for comfortable daily driving.
• [Drive Mode Change Alert]: Selects change information display method in case of drive mode change.
• [Climate Control ECO Mode]: ECO climate control can help increase driving range by reducing the heating and cooling power of the climate control system.

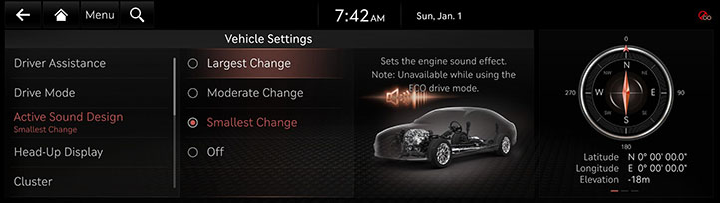

Active sound design

You can set an engine sound mode.

1. Press [Active sound design] on the vehicle settings screen.

2. Press the desired item.

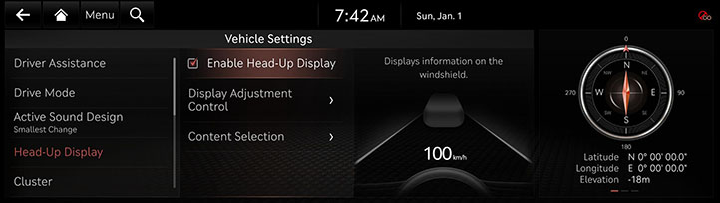

Head-Up Display

1. Press [Head-Up Display] on the vehicle settings screen.

2. Press the desired item.

• [Enable Head-Up Display]: Sets to show the head-up display on the windshield is available.
• [Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
• [Content Selection]: Sets the information to display on the heads-up display.

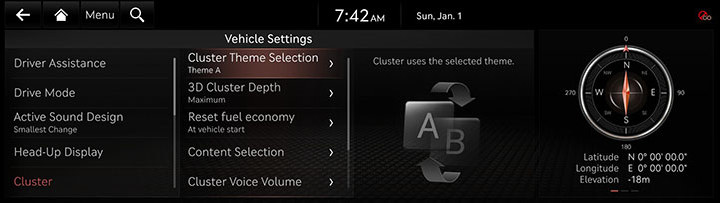

Cluster

1. Press [Cluster] on the vehicle settings screen.

2. Press the desired item.

• [Illumination]: Set the screen brightness to adjust automatically. or manually set it to stay a constant brightness level.
• [Cluster Theme Selection]: Selects a cluster theme.
• [3D Cluster Depth]: Enables 3D effects for the cluster.
• [Reset fuel economy]: Selects when to reset the average fuel economy gauge.
• [Content Selection]: Selects information to display on cluster.
• [Cluster Voice Volume]: Adjusts the cluster voice volume.
• [Welcome Sound]: Provides an audible tone when the cluster turns on or off.
• [Speedometer Subscale]: Displays the secondary speedometer scale underneath the primary scale.

,Reference

An alarm in the vehicle, guidance sound and welcome sound are generated from external amplifier. If you replace the amplifier with a non-genuine part or replace the speakers with an nongenuine part, the amplifier may not work. Visibility may decrease if the user adjusts the screen brightness to dark in a bright environment.

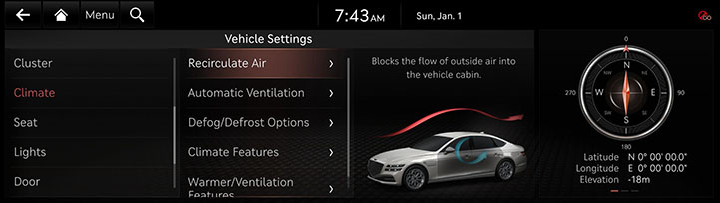

Climate

1. Press [Climate] on the vehicle settings screen.

2. Press the desired item.

• [Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
• [Automatic Ventilation]: Switches the ventilation system to fresh air mode automatically after an extended use of recirculate air.
• [Defog/Defrost Options]: Directs air to the windshield to reduce moisture on the windshield glass.
• [Climate Features]: Activates the convenience functions for climate control.
• [Warmer/Ventilated Features]: Sets the warmer/ventilated features.

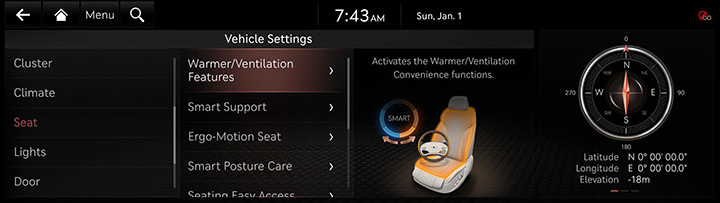

Seat

1. Press [Seat] on the vehicle settings screen.

2. Press the desired item.

• [Warmer/Ventilation Features]: Activates the Warmer/Ventilation Convenience functions.
• [Smart Support]: Increases seat bolster support based on Drive Mode and speed.
• [Ergo-Motion Seat(Driver)]/[Ergo-Motion Seat(Passenger)]: Improve the feeling of drive and reduce the fatigue.
• [Smart Posture Care]: The smart posture care suggests driving postures based on body type and displays the results of clinical testing on the back.

• [Seating Easy Access]: The seat/steering wheel are moved so the driver can more easily exit/enter the vehicle.
• [Seat Position Change Alert]: When the seat position changes, the change information is displayed on the seat image.
• [Seat Switch Alerts]: Details of the seat switch control and position change are shown with a seat image.
• [Ergo-Motion Active Alert]: When the ergo-motion activates, operation information is shown with the seat image.

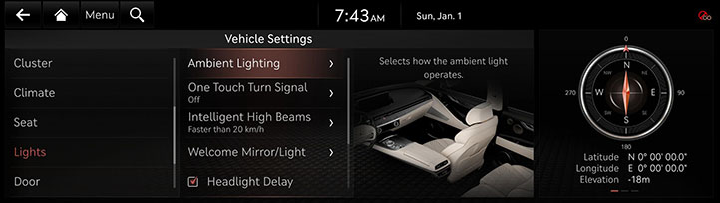

Lights

1. Press [Lights] on the vehicle settings screen.

2. Press the desired item.

• [Ambient Lighting]: Sets the interior mood lighting.
• [One Touch Turn Signal]: Selects the number of blinks of turn signal by touching the turn signal lever.
• [Intelligent High Beams]: Selects the vehicle speed at which the feature activates, or set to disable the feature.
• [Welcome Mirror/Light]: Selects the condition when the outside mirrors will unfold and the handle light will turn on automatically.
• [Headlight Delay]: When the ignition is turned off, the exterior lights turn off after approximately 15 seconds.
• [High beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.
• [Interior Lights Always On]: Illuminates the interior buttons and switches at all times.

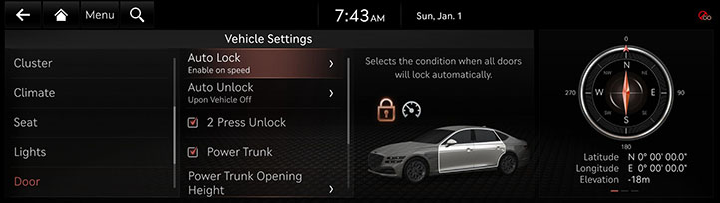

Door

1. Press [Door] on the vehicle settings screen.

2. Press the desired item.

• [Auto Lock]: Select the timing for automatic locking all doors.
• [Auto Unlock]: Select the timing for automatic unlocking all doors.
• [2 Press Unlock]: Unlocks all doors when the unlock button is pressed twice. (Press once to unlock driver door only)
• [Power Trunk]: The Power Trunk button can be used to automatically open/close the trunk.
• [Power Trunk Opening Height]: Selects the height the power trunk automatically moves.
• [Smart Trunk]: Opens the trunk lid automatically when approaching the trunk with the smart key.
• [Remote Window Control]: Enables/disables the remote window control function.

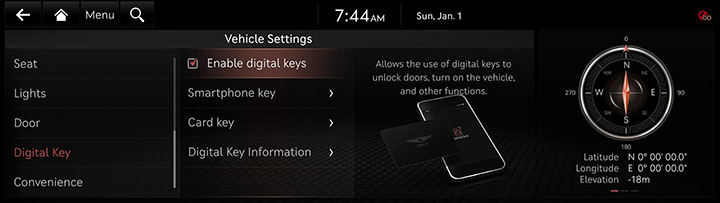

Digital Key

1. Press [Digital Key] on the vehicle settings screen.

2. Press the desired item.

• [Enable Digital Key]: Unlocks doors and turn vehicle on using a digital key.
• [Smartphone Key]/[Card Key]: Saves or deletes smartphone key or card key.
• [Digital Key Information]: Shows the serial number of the digital key.

Convenience

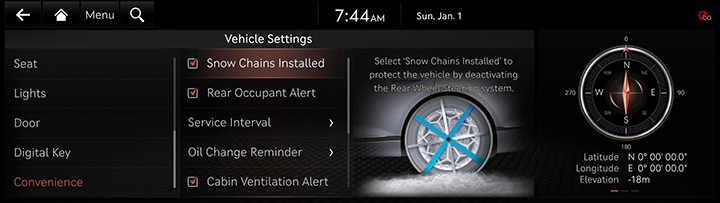

1. Press [Convenience] on the vehicle settings screen.

2. Press the desired item.

• [Snow Chains Installed]:Select 'Snow Chains Installed' to protect the vehicle by deactivating the Rear Wheel Steering system.
• [Rear Occupant Alert]: Provides an alert to the driver that passengers are in the rear seat of the vehicle.

• [Service Interval]: Displays an alert when a scheduled service interval is reached.
• [Oil Change Reminder]: Displays remaining life of engine oil. Reset manually after oil change. Check the oil level separately.
• [Cabin Ventilation Alert]: Provides a reminder to increase cabin ventilation if an occupied front seat is reclined for an hour or more after parking the vehicle.
• [Wireless Charging System]: Enables the wireless charging pad to be used with compatible devices.
• [Advanced Anti-Theft]: Provides an alert when movement is detected in the passenger compartment after the vehicle is locked.
• [Vehicle Auto-Shut Off]: Selects the time to delay automatic shut off when the vehicle is parked with its engine on.
