Basic operation

Turning the system on

The images displayed on this system may differ from actual ones.

1. Press the engine start button.

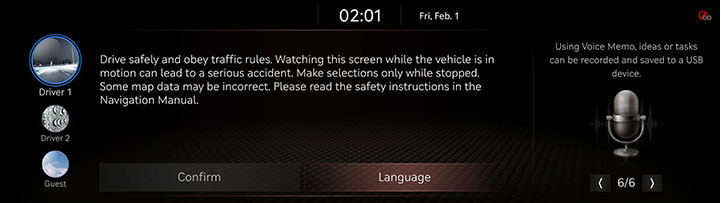

Once the system is turned on, the booting process will start and the safety warning page is displayed.

• Press [Language] to change the language of system display.
• Press [Driver 1], [Driver 2] or [Guest] to change the profile of system.

2. Press [Confirm].

,Reference

You cannot operate the system while it is booting up. It may take some time for all of the features of the system boot up. The safety warning page is displayed every time the ACC is turned on. The displayed warnings are related to safety, please read thoroughly and comply with the safety warnings.

Turning the system off

Press and hold the power button on the front seat control key to turn off the system.

Press the power button on the front seat control key to turn on the system.

,Reference

Be cautious on the volume when turning the system on. Adjust the volume to an adequate level before turning the system off.

Resetting the system

This feature is used to reset the system in the occurrence of an unforeseen error or problem.

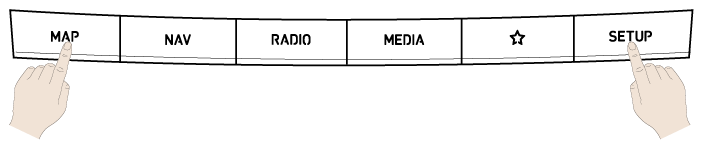

Press the [MAP] button and [SETUP] button for 5 seconds.

Adjust AV or volume

AV on/off

Press the [:/VOL] button on the front seat control key to turn the AV on/off.

Adjusting the volume

Rotate the [:/VOL] button on the front seat control key.

Using the controller and touchpad

Controller	Details
	Rotate controller to left/right to switch the menu.
	Swipe up/down/left/right on touchpad to switch the menu.
	Press touchpad to select the menu. Write the desired words or gesture on the touchpad.
	Tush controller to up/down/left/right to focus menu or move map position.

Using the touch screen

Press the desired menu on the screen to select a menu.

,Reference

Touching the front screen during driving may distract attention and cause a traffic accident. For the safety, use after stopping the vehicle.

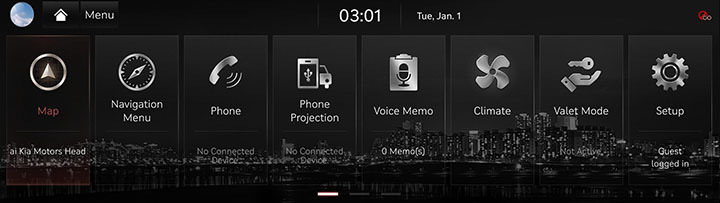

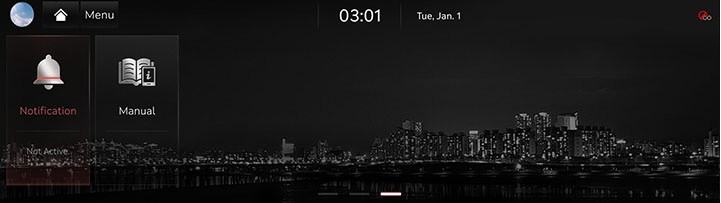

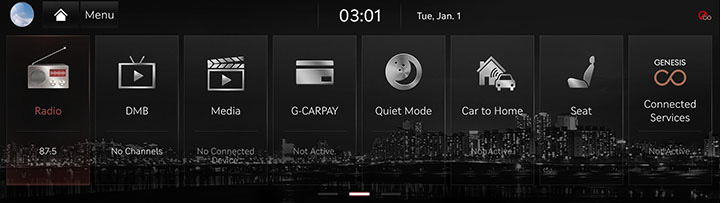

Basic controls of home screen

The images displayed on this system may differ from actual ones.

1. Press [B]. The home screen opens.

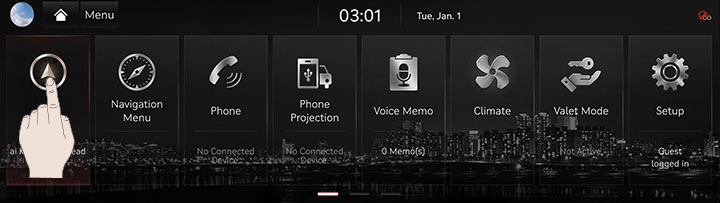

2. Select a desired menu on the home screen.
3. Follow-up controls are available for the selected menu.

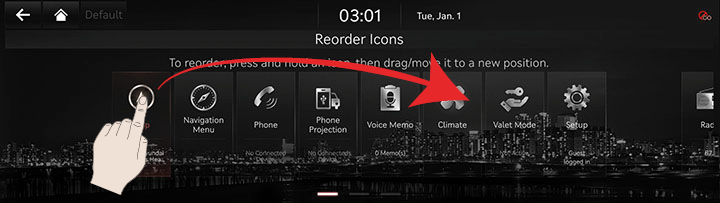

Editing home screen

Press and hold the menu icon on the home screen to change the location.

1. Press and hold the menu icon on the home screen.

2. Change the position.

3. Press [a].

,Reference

Press [Default] to reset the home icon settings.
