Start

Name of each component

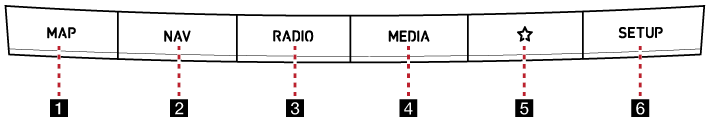

Head unit

The images may differ from the actual components.


1 MAP button

2 NAV button

3 RADIO button

4 MEDIA button

5 K(Custom) button

6 SETUP button

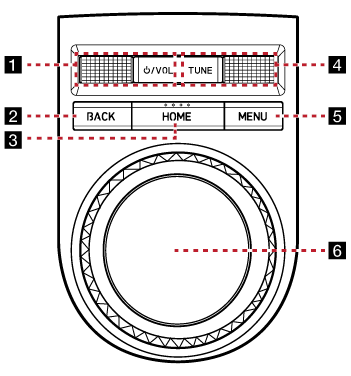

Front seat control key

The images may differ from the actual components.


1 :/VOL(Power/Volume) button

2 BACK button

HOME button

MENU button

3 Controller

Use controller to move and select the menu.

4 TUNE button

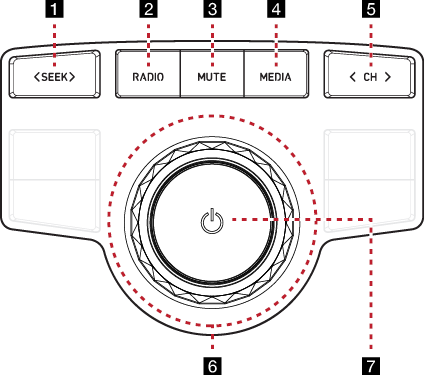

Rear remote control (Option - A)

The RRC (Rear Remote Control) function keys differ depending on the selected option.

The image of this product may be different from the actual product.


1 RADIO button

MUTE button

Turns mute on/off.

MEDIA button

Each press of the media button toggles to the playable media playback screen.

2 < SEEK > button

Selects or searches the previous/next item in each mode.

3 :(Power) button

Controller

Turns the wheel left/right to adjust the volume.

4 < CH > button

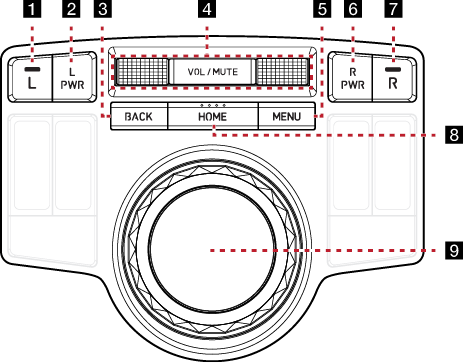

Rear remote control (Option - B)

The RRC (Rear Remote Control) function keys differ depending on the selected option.

The image of this product may be different from the actual product.


1 VOL/MUTE button

2 L button

Press to use the rear remote control only for left monitor of rear seat.

L PWR button

3 BACK button

HOME button

MENU button

Press to display a pop-up menu for each mode.

4 Controller

Use controller to move and select the menu.

5 R button

Press to use the rear remote control only for right monitor of rear seat.

R PWR button

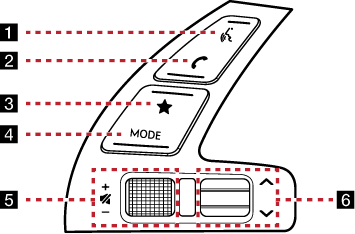

Steering wheel remote control

The images may differ from the actual components.


1 i(Voice recognition) button

2 W(Bluetooth call) button

3 L(Custom) button

4 MODE button

5 J/I(Volume) button

Turns the wheel up/down to adjust the volume.

f(Mute) button

Press the wheel to turn mute on/off.

6 W/S button
