Voice Memo

Voice Memo Screen Composition

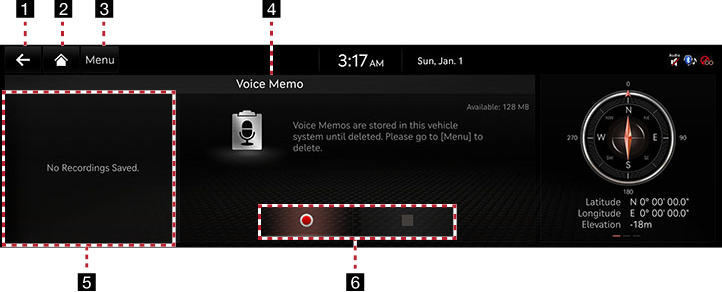

Voice Memo General Screen Composition

1 a

It moves to the home screen or a previous screen.

2 B

Moves to the home screen.

3 Menu

It displays voice memo menu.

4 Mode Display

It displays currently running mode.

5 Voice Memo List

It displays voice memo list.

6 Voice Memo Control Panel

It controls the functions of start/pause, end and save of voice memo.

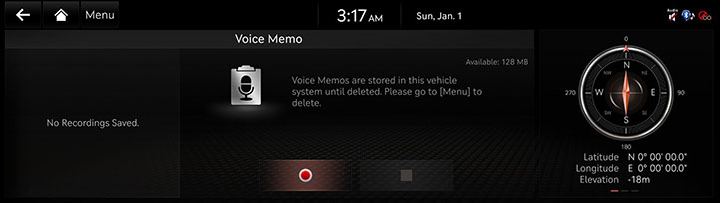

Creating a Voice Memo

Getting Started with Voice Memo

1. Press [Voice Memo] on the home screen.

2. Press [] on the voice memo screen.
3. Create a voice recording.

Pausing Voice Memo

Press [M] among voice memo.

Ending and Saving of Voice Memo

Press [Z] on the voice memo screen or press [L] on the steering wheel remote control.

,Reference

All the sounds from this unit except beep will not be output while the voice memo is operating. Voice memo pauses when you receive a Bluetooth phone call while the voice memo is operating. It is located at the top of the voice memo list in the form of 'Current location address'. When the storage space is full during a voice memo, the voice memo is automatically saved and ends.

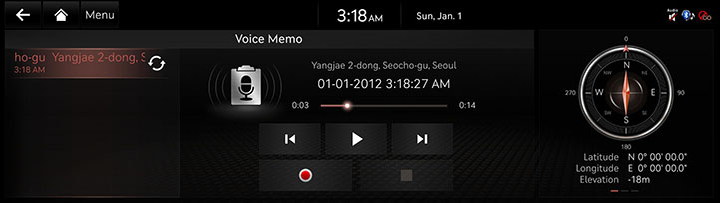

Running Voice Memo

Playback and Pause of Voice Memo

1. Select the voice memo you want to play in the voice memo list The relevant voice memo is played.

2. Press [M] to pause the playback of a voice memo.
3. Press [d] to resume the playback while a voice memo is paused.

Playing previous/next Voice Memo

Location	Detailed Explanation
Front screen	Touch [].

Forward/Backward Search

Quickly searching for the file being played.

Location	Detailed Explanation
Front screen	Touch and hold [], and release it to play the part.

,Reference

When pressing [] for 5 seconds or longer, the play speed changes as 4X > 20X.

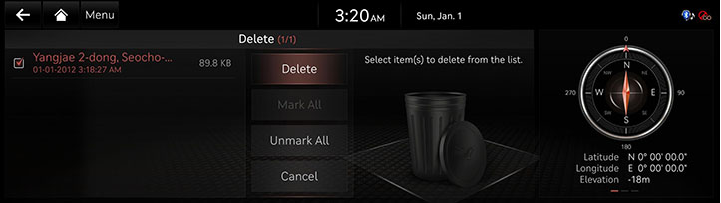

Deleting Voice Memo

1. Press [Menu] > [Delete] on the voice memo screen.

2. Select the desired item, Press [Delete] > [Yes].

• [Mark All]: Selects all items.
• [Unmark All]: Unmarks all items.
• [Cancel]: Exits screen.

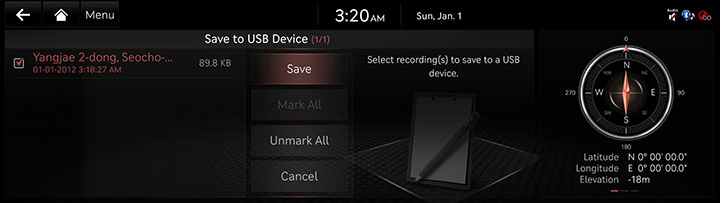

Saving a Voice Memo to USB Device

1. Connect USB to the USB port.
2. Press [Menu] > [Save to USB Device] on the voice memo screen.

3. Press a desired item, and then press [Save].

• [Mark All]: Selects all items.
• [Unmark All]: Unmarks all items.
• [Cancel]: Exits screen.

,Reference

It can be saved to a USB memory formatted with FAT 16/32 or exFAT/NTFS. When saved to USB, a voice memo is copied to "VoiceMemo" folder and saved.
