Regarding Route Guidance of Navigation

During the route, turning on each cross point and the direction of each turn are advised in voice.

Basic concept of navigation

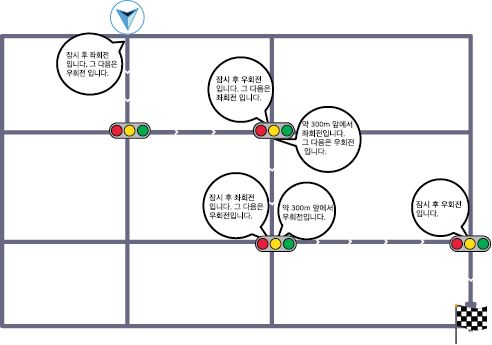

Route guidance is a function that guides the driver by indicating direction changes from the current location and the destination. The basic concept is as illustrated in the figure below.

1. Once the guidance starts, it guides the first turn.
2. As you approach the destination, it performs arrival guidance and ends the route guidance.

Navigation on General Roads

On regular roads, it provides guidance for turns and junctions.

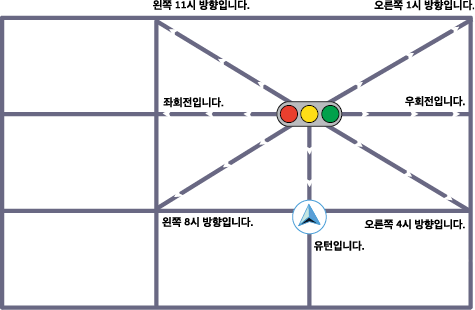

Turn guidance is given according to the shape of the intersection, as shown in the next figure.

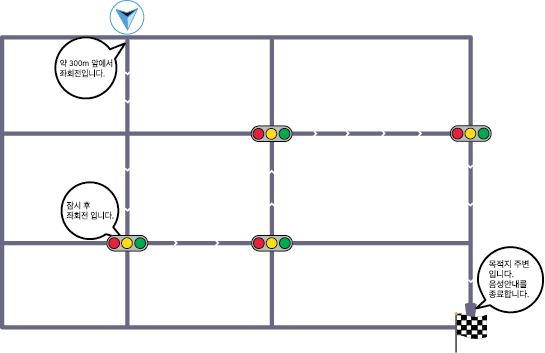

Guide to the Destination

Arrival guidance is performed when approaching the destination.

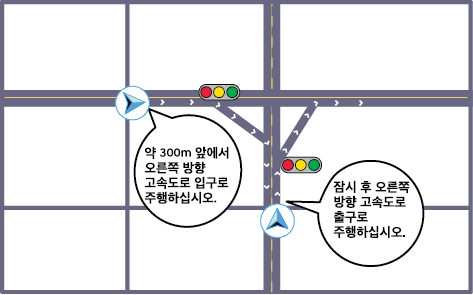

Navigation on Highway

When entering and driving on a highway, voice guidance is played at the entrance, exit and interchange with another highway.

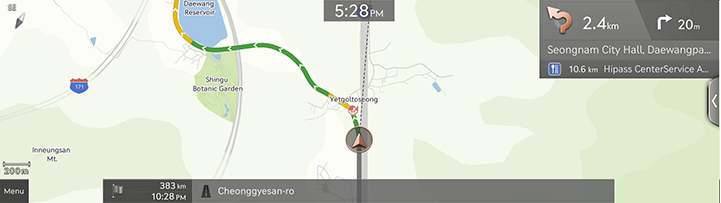

Advanced Guidance Mode

At the top left of screen, the 1st and 2nd turn information, the remaining distance and the name of heading area are displayed.

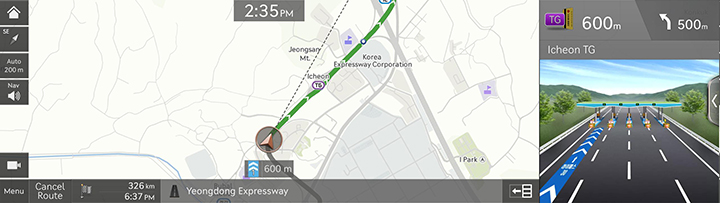

Tollgate Mode

When a tollgate is approached during the navigation to the destination, the guidance is displayed.

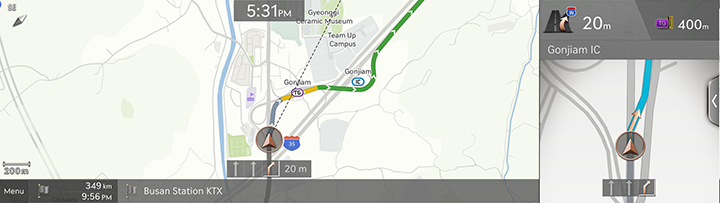

Zoom-in Mode at Crossing

Approaching to a crossing required for turning, the detail display guiding on the crossing in 3D opens.

,Reference

Lanes or the name are not displayed on a crossing mot registered in Map Data. The specified lanes and crossings may differ from the actual crossings. The zoom-in mode of crossing may appear a little late or early.

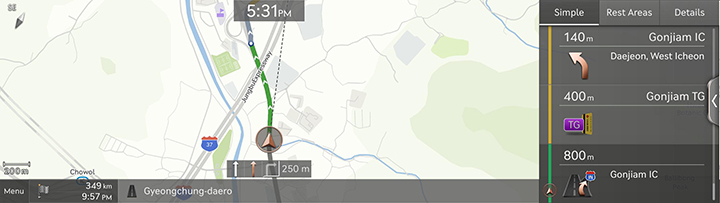

Guidance List Mode

Displays TBT (Turn by Turn) information on the route. Displays IC/JC/TG/rest area information when driving on a highway.
