DMB

Activating DMB

Regarding DMB broadcasting reception

Terrestrial (VHF) DMB is a broadcasting service for mobile media.

Depending on the area, the reception condition may differ.

However, for the safety, the video is not available while only the audio is played.

When receiving a DMB channel, the strength of wave may differ depending on the reception area or the reception can be degraded due to interferences. Therefore, if the reception is degraded, search the channel again.

The video can be degraded or the reception may fail especially in following areas:

,Reference

  • DMB TV reception may fail due to the local programing schedule, the station circumstance or the wave environment. And the program may change due to the broadcasting transmission type change.
  • This receiver can receive DMB TV signals and supports data services (KBS TPEG) as well.
  • The screen automatically changes according to the mode corresponding to the selected DMB TV channel.
  • The mode of DMB TV is not separately controlled, yet, is determined according to the transmission format of the station.

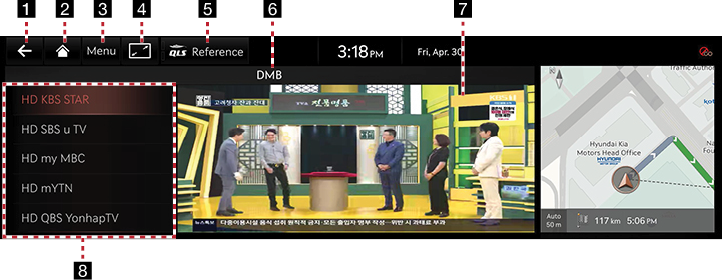

Activating DMB mode

Press [DMB] on the home screen.


,Reference

  • For the safety, the DMB video is supported only when the gear is at "P" position.
  • For the safety, the video is not supported and other partial features are restricted while the vehicle is in driving condition. However, the audio is played.
  • Even when the vehicle stops, if the gear is not in "P" position, the video is not supported.
  • When Auto Hold is turned on, video is displayed when the vehicle is stopped even if the gear is not in "P" position.
  • In case of the system including the rear display (option), watching DMB TV during driving at the rear display is available.

DMB full screen mode

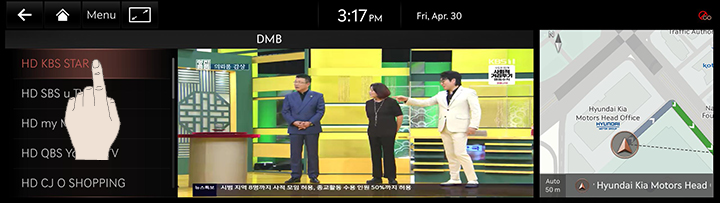

Touching on the screen switches to DMB list screen/DMB full screen.

,Reference

  • To view in full screen, press [O] on the DMB screen. Or press [Menu] > [Full Screen].
  • The menu selection by the touch button is an available on the front/rear screen.

Initial channel search method

Searches channels if DMB TV is watched for the first time or no channel has been registered.

  1. Press [DMB] on the home screen. Initial channel search screen opens.
  2. Press [Yes]. To cancel initial channel search, press [No].

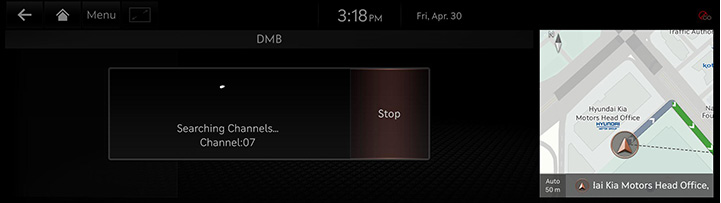

  1. Search for channels that can be received. To cancel channel search, press [Stop].

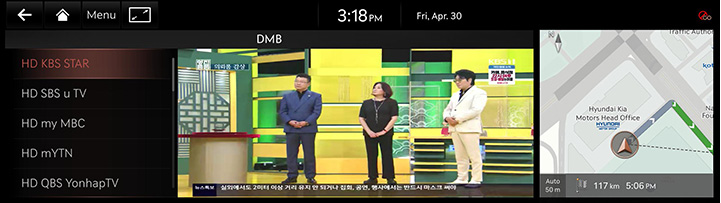

  2. The searched channel is automatically received.


,Reference

  • During initial channel search, if the channel search is canceled, switches to the home screen.
  • When DMB channels are searched, TV and radio channels are searched simultaneously.

Searching broadcasting channels

If no broadcasting is available in a new area, the corresponding broadcastings in the area will be available by searching channels.

  1. On the DMB screen, press [Menu] > [Channel Search].

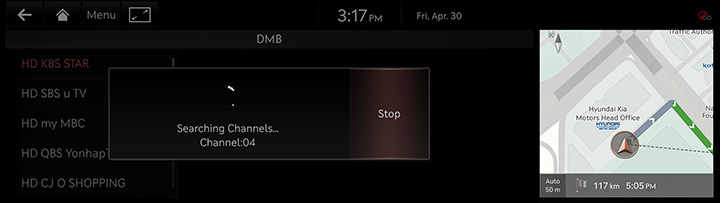

  1. Search for channels that can be received. To cancel channel search, press [Stop].

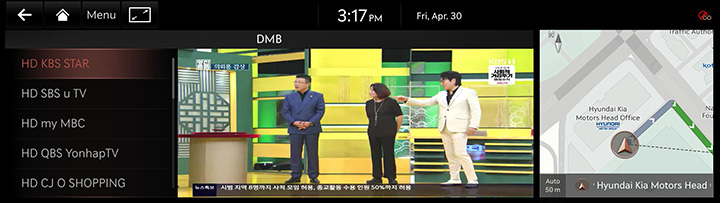

  2. The searched channel is automatically received.


Moving DMB channel list

You can change the channel stored in DMB channel list in the desired order.

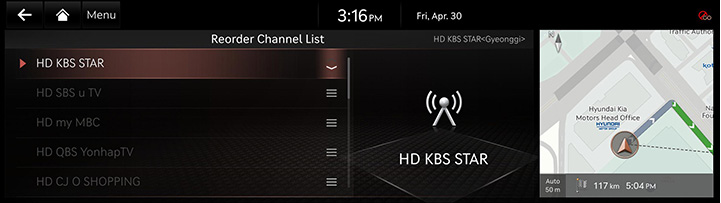

  1. On the DMB screen, press [Menu] > [Move Channel List].

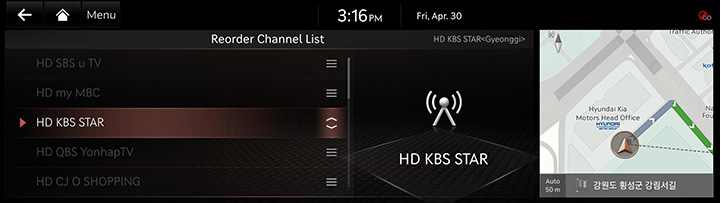

  1. Change the position.

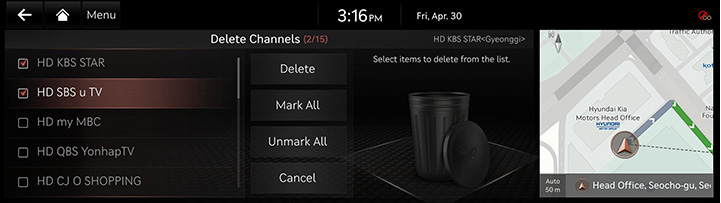

Deleting DMB channel list

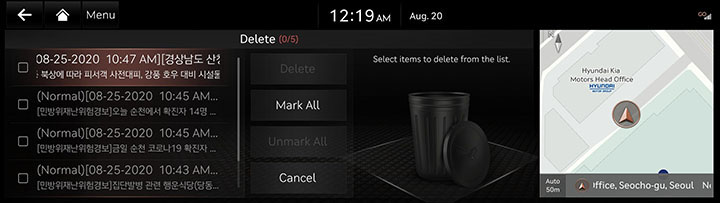

  1. On the DMB screen, press [Menu] > [Delete Channel List].


  1. Select the desired item, press [Delete] > [Yes].

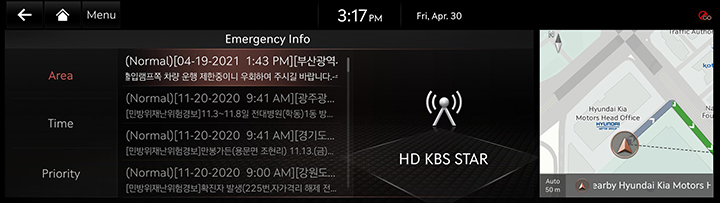

Emergency broadcasting list

May check the list of flood, earthquake, heavy rain or other emergency broadcastings.

  1. On the DMB screen, press [Menu] > [Emergency Info].


  1. Check emergency information.

Display settings

  1. On the DMB screen, press [Menu] > [Display Settings].
  2. For more details, refer to the "Display settings".

Sound settings

  1. On the DMB screen, press [Menu] > [Sound Settings].
  2. For more details, refer to the "Sound settings".
