Button/Touch Pad settings

The images displayed on this system may differ from actual ones.

Move to Button/Touch Pad Settings screen

You can set button/touch pad Settings Items.

Press [Setup] > [Button/TouchPad] on the home screen. Button/touch pad settings screen is displayed.

Custom Button K (by Audio)/L (Steering Wheel)

You can set the function you want to execute with the user button.

1. On the button/touch pad settings screen, press [Custom Button K (by Audio)/L (Steering Wheel)].

2. Press the desired item.

Mode Button (Steering Wheel)

The selected media can be accessed by pressing the steering wheel mode button. Only active/available media can be accessed.

1. On the button/touch pad settings screen, press [MODE Button (Steering Wheel)].

2. Press a desired mode.

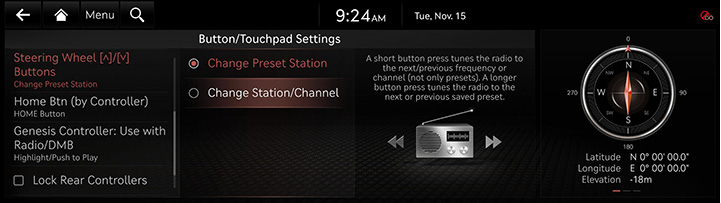

Steering Wheel [W]/[S] Buttons

Set the buttons on the steering wheel to a function when listening to radio.

1. On the button/touchpad settings screen, press [Steering Wheel [W]/[S]Buttons].

2. Selects the desired item.

Home Btn (by Controller)

Sets the function to be activated when the Home button is pressed briefly.

1. On the button/touch pad Setting screen, press the [Home Btn (by Controller)].

2. Press a desired item.

• [HOME Button]: Press the HOME button to go to the Home screen; press and hold it to go to the Map screen.
• [Map Button]: Press the HOME button to go to the MAP screen; press and hold it to go to the Home screen.

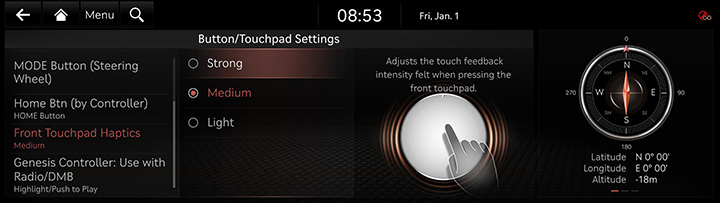

Front Touchpad Haptics

You can adjust the haptic intensity when pressing the front touch pad.

1. On the button/touch pad settings screen, Press [Front Touchpad Haptics].

2. Press a desired item.

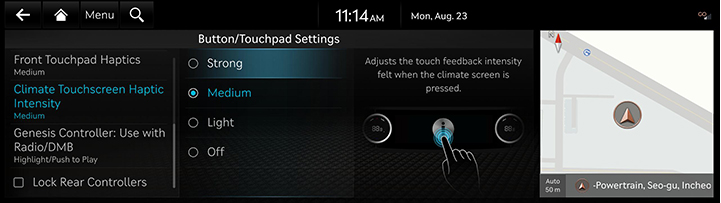

Climate Touchscreen Haptic

Adjusts the haptic intensity when pressing the climate touchscreen.

1. On the button/touch pad settings screen, Press [Climate Touchscreen Haptic].

2. Press a desired item.

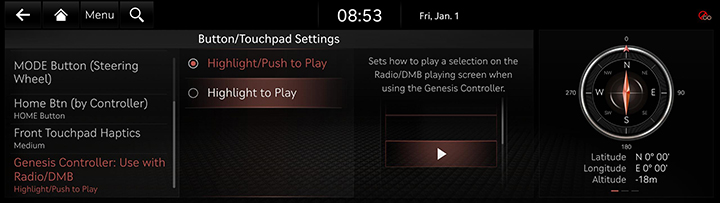

Genesis Controller:Use with Radio/DMB

Sets how to play a selection on the Radio/DMB playing screen when using rotary controller.

1. On the button/touch pad settings screen, press the [Genesis Controller:Use with Radio/DMB].

2. Press a desired item.

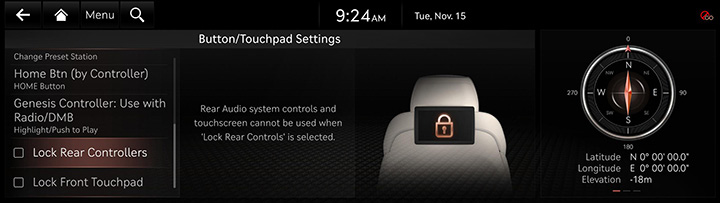

Lock Rear Controllers

Rear Audio system controls and touchscreen cannot be used when 'Lock Rear Controls' is selected.

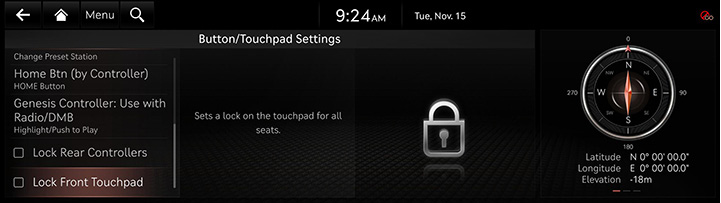

Lock Front Touchpad

Sets a lock on the touchpad for all seats.
