Vehicle settings

The images displayed on this system may differ from actual ones.

It sets the items to be displayed or guided on the vehicle.

Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.

Press [Setup] > [Vehicle] on the home screen. Vehicle settings screen is displayed.

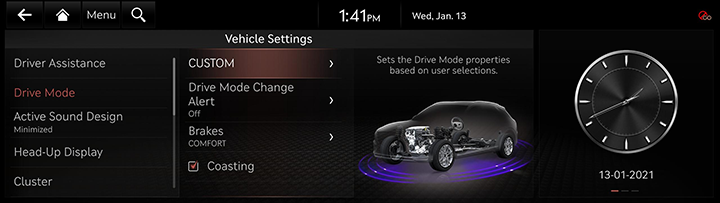

Drive Mode

[CUSTOM]: Composes the optimal mode through combination of each system’s mode.
[Drive Mode Change Alert]: Selects the mode change notification option when drive mode is changed.
[Brakes]: Selects the brake mode optimized for your driving style.
[Coasting]: Engine is decoupled from transmission during vehicle coasting for better fuel economy in ECO drive modes.

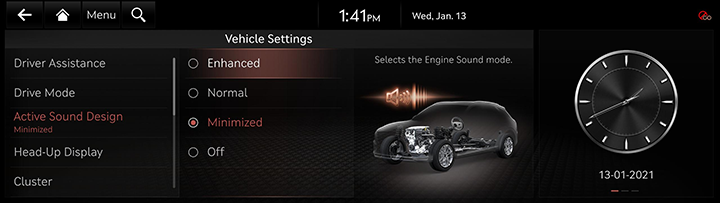

You can set an engine sound mode.

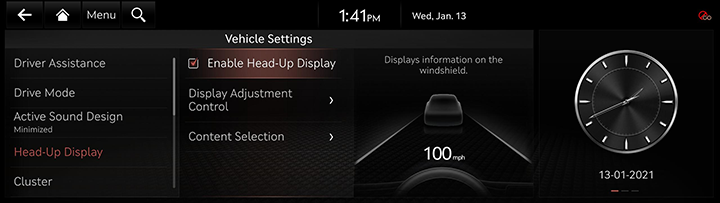

[Enable Head-Up Display]: Sets to show information on the windshield.
[Display Adjustment Control]: Controls the display height, rotation and brightness to desired values.
[Content Selection]: Sets the items to apply [Head-Up Display]. Check the box of the desired items.

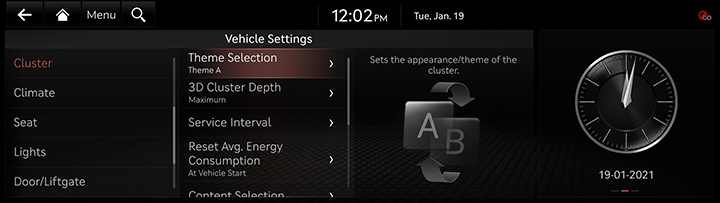

[Theme Selection]: Sets the appearance/theme of the cluster.
[3D Cluster Depth]: Enables 3D effects for the cluster.
[Service Interval]: Displays an alert when a scheduled service interval is reached.
[Reset Avg. Energy Consumption]: Selects when to reset the average fuel economy gauge.
[Content Selection]: Selects contents to be shown on the cluster display.
[Cluster Voice Volume]: Adjusts the cluster voice volume level.
[Oil Change Reminder]: Displays remaining life of engine oil. Reset manually after oil change. Check the oil level separately.
[Welcome Sound]: Provides an audible tone when the cluster turns On or Off.
[Speedometer Subscale]: Displays the secondary speedometer scale underneath the primary scale.

,NOTE

An alarm in the vehicle and guidance sound are generated from external amplifier.
If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work.

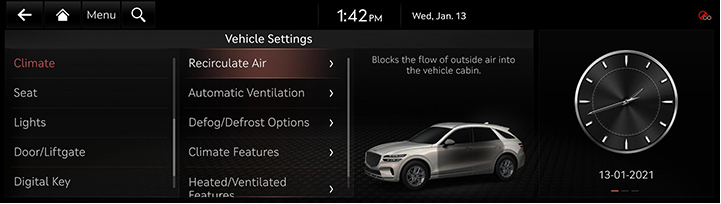

[Recirculate Air]: Blocks the flow of outside air into the vehicle cabin.
[Automatic Ventilation]: Switches the ventilation system to fresh air mode automatically after an extended use of recirculate air.
[Defog/Defrost Options]: Sets the function used to reduce moisture on the windshield glass.
[Climate Features]: Activates the convenience functions for climate control.
[Heated/Ventilated Features]: Adjusts the options on the seat heating and ventilation.

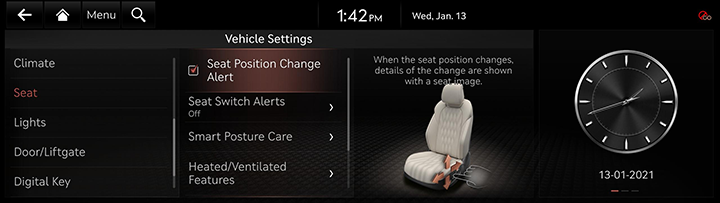

[Seat Position Change Alert]: When seat position moves, details of the change are shown with a seat image.
[Seat Switch Alerts]: Shows seat switch function after pressing the control, and seat position changes using images. Recommends a posture fitting the driver’s body type and provides a clinical analysis for back health.
[Smart Posture Care]: The smart posture care suggests driving postures based on body type and displays the results of clinical testing on the back.
[Heated /Ventilated Features]: Sets [Automatic Controls Linked to Climate Control Settings] or [Seat Heater Balance].
[Seating Easy Access]: Sets [Steering Wheel Easy Access], [Driver Seat Easy Access], [Front Passenger Seat].
[Ergo-Motion Seat]: Sets [Comfortable Stretch], [Alertness Assist], [Smart Posture Assist], [Smart Support].

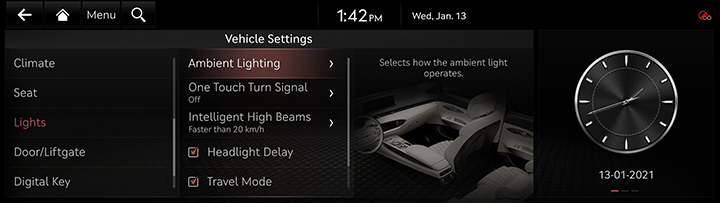

[Ambient Lighting]: Sets the interior mood lighting.
[One Touch Turn Signal]: Select the number of blinks of turn signal by touching the turn signal lever.
[Intelligent High Beams]: Select the vehicle speed at which the feature activates, or set to disable the feature.
[Headlight Delay]: When the engine is turned off, the rear and head lights stay on for about 15 seconds.
[Travel Mode]: Reduces the headlight range to prevent glare for oncoming cars within countries with opposing driving directions.
[High Beam Assist]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

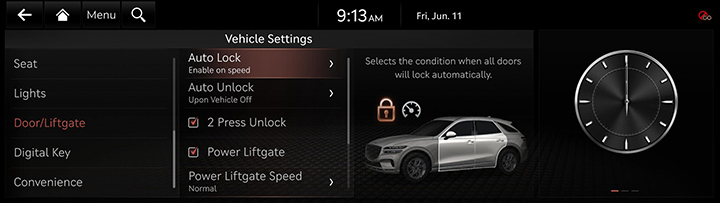

[Auto Lock]: Select the timing for automatic locking all doors.
[Auto Unlock]: Select the timing for automatic unlocking all doors.
[2 Press Unlock]: Press door unlock button of the key to unlock all doors.
[Power Liftgate]: The power liftgate button can be used to automatically open/close the liftgate.
[Power Liftgate Speed]: Selects the speed the power liftgate automatically moves.
[Power Liftgate Opening Height]: Selects the height the power liftgate automatically moves.
[Smart Liftgate]: Opens the liftgate automatically when approaching the liftgate with the smart key.

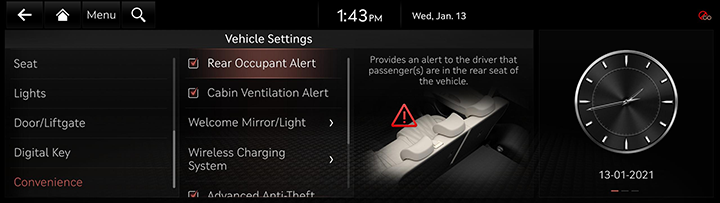

[Rear Occupant Alert]: Provides an alert to the driver that passengers are in the rear seat of the vehicle.
[Cabin Ventilation Alert]: Provides an alert if abnormal temperature or air quality is detected when the driver stays in the parked vehicle for more than an hour.
[Welcome Mirror/Light]: Sets the welcome mirror or light offered when you approach with the smart key or the door is unlocked.
[Wireless Charging System]: Enables the wireless charging pad to be used with compatible devices.
[Advanced Anti-Theft]: Provides an alert when movement is detected in the passenger compartment after the vehicle is locked.
[Auto Rear Wiper (in R)]: Activates the rear windshield wiper automatically when the front wiper in On and the gear is in reverse.
[Vehicle Auto-Shut Off]: Selects the time to delay automatic shut off when the vehicle is parked with its engine on.
