Phone

Making phone calls

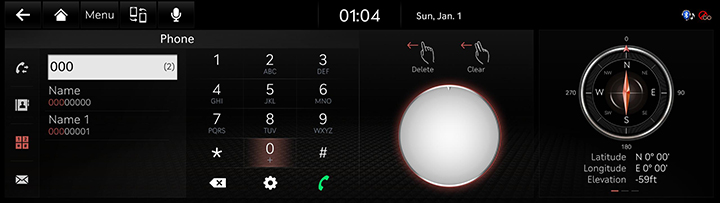

Making phone calls by entering the number

  1. Press [Phone] > [G] on the home screen.


  1. Enter the phone number.
  2. Press [%5bi%5d%2009_PHONE_03_CALL.jpg] on the screen.

Or press the Bluetooth call button on the steering wheel remote control.

  1. Calls the entered phone number.

,Note

  • In case of entering a wrong number, press [N] to delete each digit.
  • Press and hold [N] to delete all entered numbers.
  • Press and hold the number [0], '+' is entered in the number input window.
  • Phone call is available by entering only a part of the phone number.

Making phone calls via speed dial

  1. Press [Phone] > [G] on the home screen.
  2. Press and hold the speed dial number registered in the phone.
  1. Calls the speed dial number.

,Note

Some mobile phone models may not support this feature.

Making phone calls via re-dial

  1. Press [Phone] > [G] on the home screen.
  2. Press and hold [%5bi%5d%2009_PHONE_03_CALL.jpg] on the screen.
  3. Calls the most recently dialed phone number.

,Note

  • Re-dial is not available if no phone call has been made or a Bluetooth phone is not connected.
  • Press [%5bi%5d%2009_PHONE_03_CALL.jpg] shortly on the dial screen, the most recently dialed phone number is entered in the number input window.

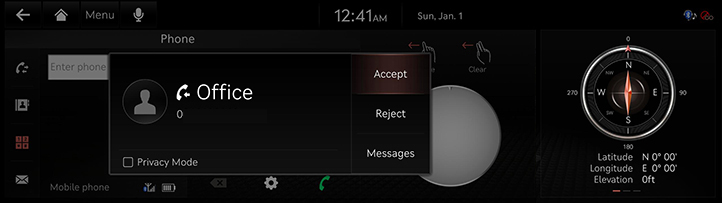

Receiving phone calls

  1. To receive an incoming call, press [Accept] on the screen.


  1. The call is connected.

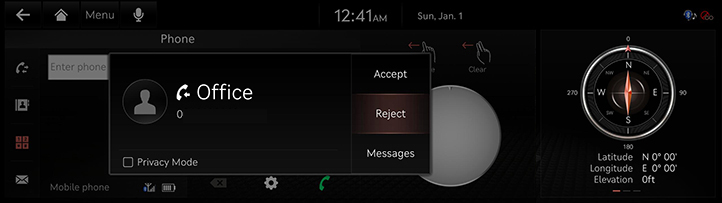

Rejecting phone calls

  1. To reject an incoming call, press [Reject] on the screen.


  1. The call is rejected.

,Note

Some mobile phone models may not support this feature.

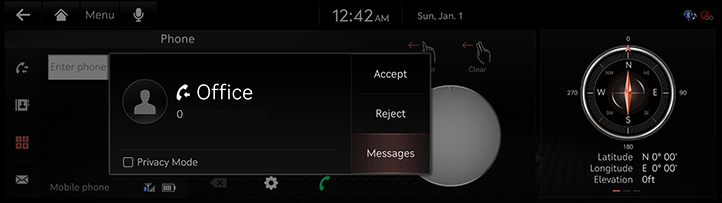

Responding to incoming call with text

  1. Press [Messages] on the screen, respond to incoming calls by text message.

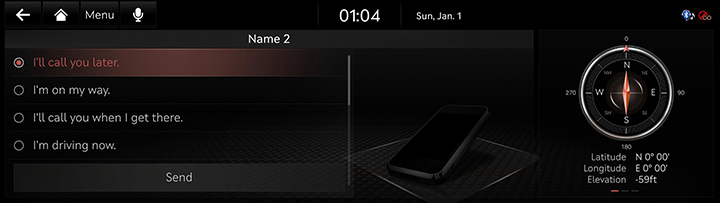

  1. Select the desired message.


  1. Press [Send].

,Note

Some mobile phone models may not support this feature.

Switching calls to mobile phone/hands-free

Switches a call from hands-free to mobile phone or vice versa.

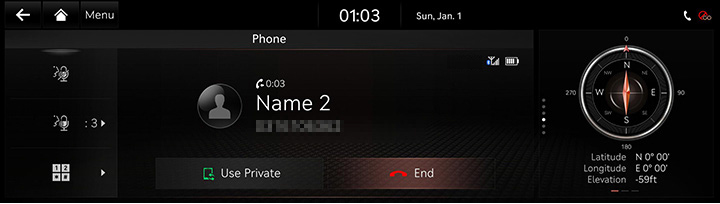

  1. Press [Phone] on the home screen. The hands-free mode is displayed.


  1. During a call, press [Use Private].

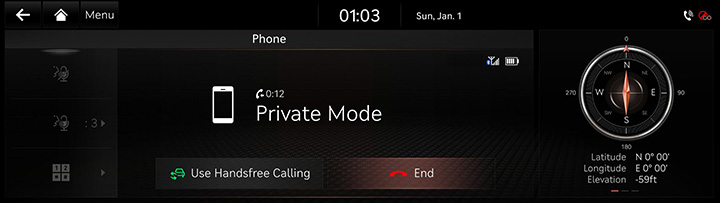

  1. The private mode is displayed.

To switch to the hands-free mode, press [Use Handsfree Calling] on the screen.

Hanging up calls

  1. Press [End] on the screen during a call.


  1. The call ends.

,Note

  • To cut the sound delivered to the other party during a phone conversation, press [%5bi%5d%2009_PHONE_04_MIC_OFF.jpg].
  • To control the mic volume during a phone conversation, press [%5bi%5d%2009_PHONE_04_MIC_VOL.jpg].
  • To open dial pad during a phone conversation, press [G].
