Climate
The images may differ from the actual components.

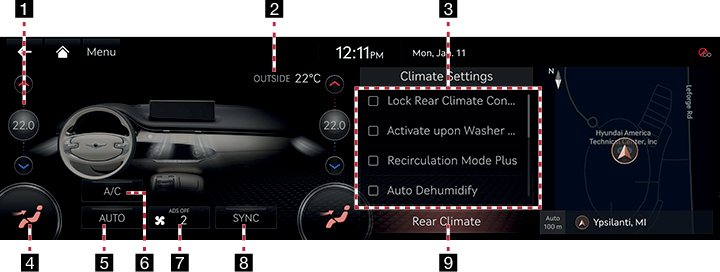

Operating Climate
Press [Climate] on the home screen.
|
|
|
|
1 Front seat set temperature
It sets the set temperature of the front seat.
2 Outside temperature
It displays the current temperature outside the vehicle.
3 Lock Rear Climate Control
Sets the rear climate control locked.
Activate Upon Washer Fluid Use
Automatically prevents the washer fluid scent from entering the cabin.
Recirculation Mode Plus
Uses navigation information to prevent unpleasant gases and odors from entering the vehicle at known locations.
Auto Dehumidify
Automatically switches to fresh air ventilation to decrease humidity after an extended use of air recirculation.
Smart Ventilation
When the climate control system is off, fresh air ventilation is activated automatically to maintain good cabin air quality.
Defog/Defrost
Sets the DEF button so that it increases fan speed, switches to fresh air, activates A/C, and directs air to the windshield to clear it.
Auto Defog
Automatically activates various defog functions based on the level of humidity in the vehicle cabin.
Air Conditioner Auto-Dry
Sets the air conditioner dried automatically.
Indirect Ventilation
Sets the ventilation to operate indirectly.
Steering Wheel Warmer
Auto-adjusts Steering Wheel Warmer based on Climate settings.
Seat Warmer/Ventilation
Auto-adjusts Seat Warmer/Ventilation based on Climate settings.
4 Blower position
Changes the seat blower position to up/down.
5 AUTO
The air cooling and heating are automatically activated according to the set temperature.
6 A/C
When the A/C is active, air conditioner is operated for vehicle cooling.
7Blower level
It displays the set blower level.
8SYNC
When the SYNC is active, front passenger seat and driver seat are synchronized.
9 Rear climate controls
It sets the air conditioning temperature and air volume operating in the rear seats.

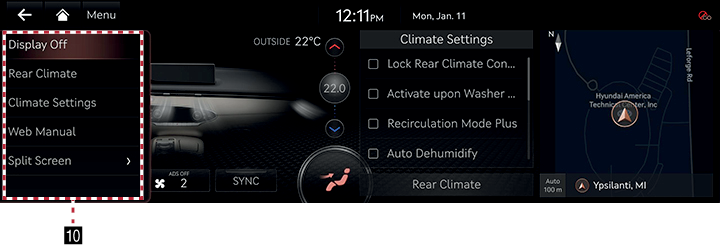

10 Display off
Turns off the screen.
Front climate controls/rear climate controls
It sets the air conditioning temperature and air volume operating in the front/rear seats.
Climate Settings
Moves to climate setting menu.
Web manual
Displays the QR code for the manual of corresponding function.
Split screen
Displays split screen selection menu.

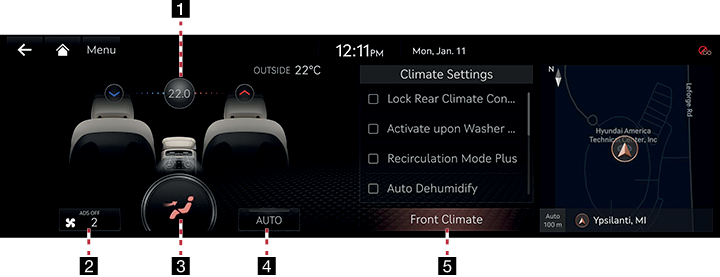

Controlling Rear Seat Climate
Powers on or off of the climate device of rear seat.
Press [Rear Climate Controls] on the climate screen.
|
|
1 Rear seat set temperature
It sets the set temperature of the rear seat.
2 Blower level
It displays the set blower level.
3 Blower position
Changes the seat blower position to up/down.
4 AUTO
The air cooling and heating are automatically activated according to the set temperature.
5 Front climate controls
It sets the air conditioning temperature and air volume operating in the front seats.
