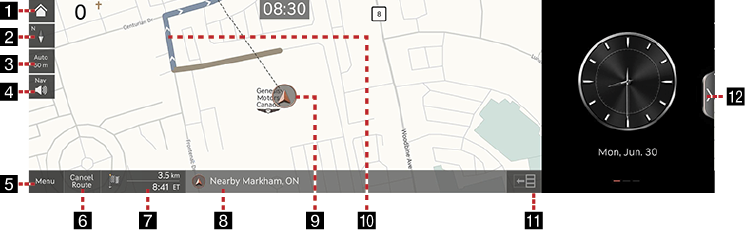

Map Screen Composition

1 Home

Moves to home screen.

2 Map view

Displays the map view in 2D north up, 2D heading up, 3D map, and neon.

GPS reception status display

• Reception: Specified in color
• Reception failure: Specified in grey color
• GPS reception may not be displayed on any map view mode.

3 Map scale display

Switches the map scale to auto or manual.

• (Auto inactivation): Fixed scale
•
  (Auto activation): Automatic scale (Scale changes based on the current vehicle speed).

4 Navigation volume

Sets the navigation voice guidance and sound effect volume.

• c: Guidances start
• [Voice]: Adjusts the volume of the voice guidance.
• [Sound Effect]: Adjusts the volume of the sound effect.
• d: Guidances stop

5 Menu

Opens the pop-up menu.

6 Cancel Route/Resume Route

• Deletes the currently set route to press the [Cancel Route].
• Press and hold [Cancel Route] to pause the currently set destination.
• Press [Resume Route] to guide the paused route again.

7 Estimated arrival time and remaining distance

Displays the remaining distance, the required time and the estimated time to arrive the destination.

8 Current location and destination name display

Displays the current location and the destination name.

9 Vehicle position mark

Displays current vehicle position and direction.

10Route display

Displays the route from the current vehicle location to the set destination.

11 TBT (Turn By Turn)

Turns the TBT (Turn By Turn) on/off.

• Displays distance and direction information for the upcoming TBT (Turn By Turn) when the route is activated.

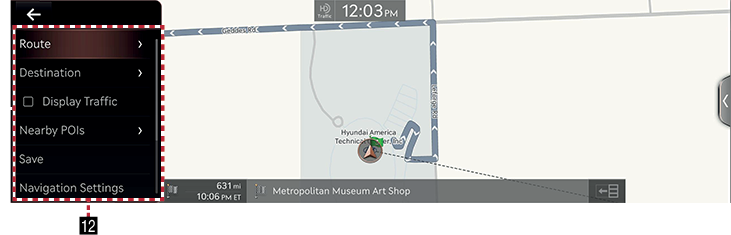

12 Route

You can cancel, refreshfy, edit the route or use the additional function like setting the route option, overviewing the route or displaying more route or destination information.

Destination

You can search the destination or load destination information from the previous destination list or saved place.

Display Traffic

Sets whether to display traffic information.

Nearby POIs

You can change the POI display setting or browse POI category to set as destination or add waypoint.

Save

Saves the current location in saved place.

Navigation Settings

Moves to navigation settings.

Display Off

Turns off the screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.
