Radio

Activating radio

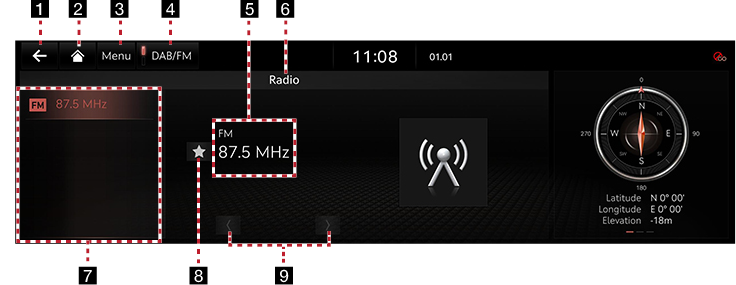

DAB (If equipped)/FM or AM Mode Screen Composition



1 a

Moves to home screen or the previous screen.

2 B

Moves to home screen.

3 Menu

Shows radio menu.

4 DAB (If equipped)/FM & AM

Selects the desired radio band by pressing DAB (If equipped)/FM or AM.

5 Frequency

Shows the frequency of currently tuned station.

6 Mode display

Shows the mode currently in play.

7 Favourite list

Shows radio frequency saved in favourite list.

8 Save as favourite

Saves the current frequency in a desired favourite list.

9 Radio scan

Searches the frequency to left/right.

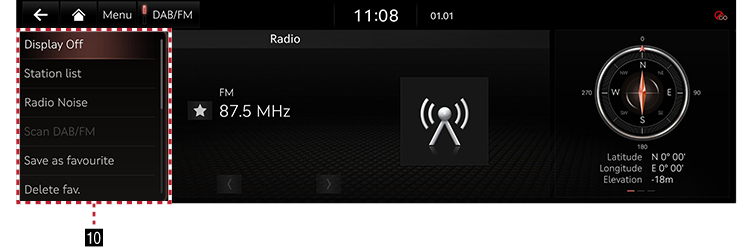

10 Display Off

Turns off the screen.

Station list

Moves to station list screen.

Radio Noise

Moves to radio noise settings. (Only FM)

Scan FM & Scan AM

Each channel of good reception is received for 5 seconds. (Only FM/AM)

Save as favourite

Saves the current frequency in a desired favourite list.

Delete fav.

Delete channels saved in favourite list.

Manual tune FM

Moves to manual tune screen. (Only DAB (If equipped)/FM)

TA

Displays TA (Traffic Announcement) information. (Only DAB (If equipped)/FM)

Regional

Displays the regional broadcasting. (Only DAB (If equipped)/FM)

DAB/FM switching (If equipped)

Switches DAB/FM. (Only DAB/FM)

Sound settings

Moves to sound settings screen.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays split screen selection menu.

Activating DAB (If equipped)/FM or AM Mode

  1. Press [RADIO] on the head unit. Or press [Radio] on the home screen.

The last listened mode among DAB (If equipped)/FM or AM plays.

  1. Each pressing on [RADIO] on the head unit switches the mode in sequence of DAB (If equipped)/FM > AM > DAB (If equipped)/FM.
  2. Select a radio frequency and listen to the radio.

Selecting a Radio Frequency

Manually Selecting a Frequency

Direct selection of a radio frequency is available.

Frequency is up or down by one level (DAB (If equipped)/FM: 0.1 MHz, AM: 9 KHz).

Rotate [TUNE] on the front seat control key to up/down to select a frequency on controller in DAB (If equipped)/FM or AM mode.


Automatically Selecting a Frequency

Automatic selection of a radio frequency is available.

In DAB (If equipped)/FM or AM mode, pressing [Menu] > [Scan FM]/[Scan AM] or releasing after pressing and holding [S/W] on the steering wheel remote control tunes to stations of good receptions by increasing/decreasing the frequency.

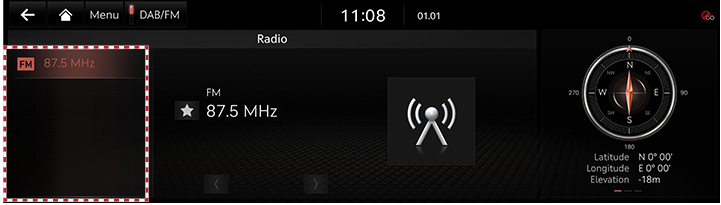

Selecting Frequency with Preset List

Listening the radio is available by selecting a station saved in preset list.

In DAB (If equipped)/FM or AM mode, press the preset List (specified by the dotted lines) where the desired station is saved or press [S/W] on the steering wheel remote control to listen the desired station.


Manual tuning

Rotate [TUNE] on the front seat control key to up/down.

On the DAB (If equipped)/FM mode, press [Menu] > [Manual tune FM].


Viewing Station List

May play a desired station by searching the list.

  1. Press [Menu] > [Station list] on the screen.

    The list is displayed on the screen.


  1. Select a desired station from the list screen.

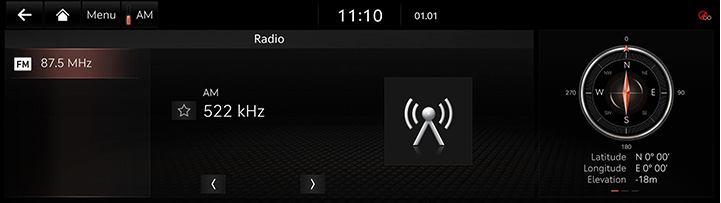

Saving Radio Frequency in favourite List

Saves the current frequency in a desired favourite list.

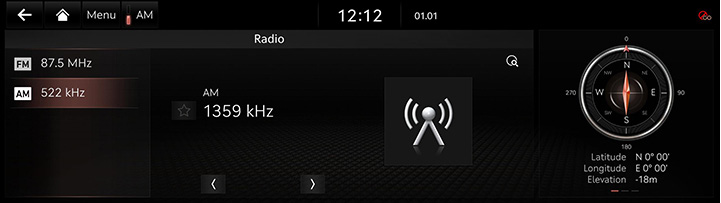

  1. Select a frequency desired to save on the frequency display screen.

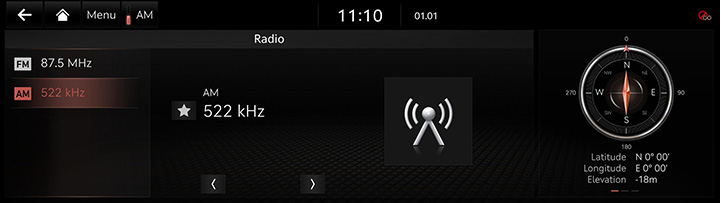

  1. Press [Menu] > [Save as favourite]. Saves the frequency in a desired favourite list.


,Note

Press [K] to save the desired frequency.

Scanning Radio Frequency

Each of frequencies of good receptions is received.

Press [Menu] > [Scan FM]/[Scan AM] in DAB (If equipped)/FM or AM mode.


,Note

Press [Menu] > [Stop Scan] during scanning on the radio screen. The radio of the frequency selected when the scanning stopped is played.

Deleting Favourites

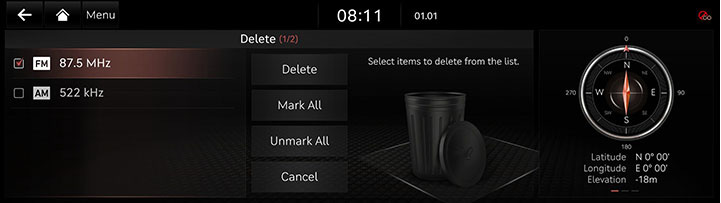

  1. Press [Menu] > [Delete fav.] in DAB (If equipped)/FM or AM mode.


  1. Select the desired item, Press [Delete] > [Yes].

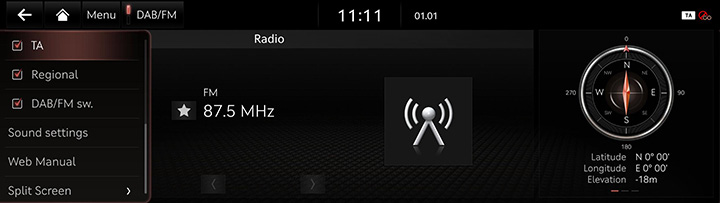

TA On/Off

This function allows the system to switch to TA (Traffic Announcement) from the current source.

Traffic programmes and announcements can be automatically received by using TA features.

  1. Press [Menu] in DAB (If equipped)/FM mode.


  1. Activate the TA feature by pressing [TA].
  2. If TA is received from the broadcasting station, a pop-up message will appear and TA broadcasting is received.

Regional

When the receiving signals from the current station become weak, the station switches to another station.

  1. Press [Menu] > [Regional] in DAB (If equipped)/FM mode.
  2. Press [Regional] again to cancel the function.

DAB/FM sw. (If equipped)

This function allows the current DAB broadcasting is disconnected, find the same FM broadcasting automatically. When listening the FM radio, the system automatically switches to DAB when it finds the same DAB broadcasting.

  1. Press [Menu] > [DAB/FM sw.] in DAB/FM mode.
  2. Press [DAB/FM sw.] again to cancel the function.

Sound Settings

  1. Press [Menu] > [Sound settings] in DAB (If equipped)/FM or AM mode.
  2. For more details, refer to the "Sound settings".
