Vehicle settings
The images displayed on this system may differ from actual ones.
It sets the items to be displayed or guided on the vehicle.
Depending on the vehicle's options and the condition of the controller, some menus may not be displayed.
Press [Settings] > [Vehicle] on the home screen. Vehicle settings screen is displayed.
Drive Mode
- Press [Drive mode] on the vehicle settings screen.
|
- Press the desired item.
- [CUSTOM]: Composes the optimal mode through combination of each system’s mode.
- [Brakes]: Selects the brake mode optimized for your driving style.
- [Drive mode change alert]: Selects the mode change notification option when drive mode is changed.
- [Coasting]: Engine is decoupled from transmission during vehicle coasting for better fuel economy in ECO drive modes.
Active sound design
You can set an engine sound mode.
- Press [Active sound design] on the vehicle settings screen.
|
- Press the desired item.
Head-Up Display
- Press [Head-up display] on the vehicle settings screen.
|
- Press the desired item.
- [Head-up display]: Sets to show information on the windshield.
- [Display adjustment]: Controls the display height, rotation and brightness to desired values.
- [Content selection]: Sets the items to apply [Head-Up Display]. Check the box of the desired items.
Cluster
- Press [Cluster] on the vehicle settings screen.
|
- Press the desired item.
- [Theme selection]: The selected theme is used for the layout of the cluster display.
- [3D Cluster depth]: Enable 3D effects for the cluster display.
- [Service interval]: An alert is displayed when a specified service interval is due.
- [Energy consumption reset]: Selects when to reset the average fuel economy gauge.
- [Content selection]: Definition of the content to be displayed in the cluster
- [Cluster voice guidance volume]: Adjusts voice guidance volume.
- [Oil change reminder]: Displays the remaining life of engine oil. Reset manually after oil change. Check the oil level separately.
- [Welcome sound]: A greeting chime is provided when the cluster is turned On or Off.
- [Speedometer subscale]: Display of a secondary speedometer scale underneath the primary scale.
,NOTE |
An alarm in the vehicle and guidance sound are generated from external amplifier. If you replace the amplifier with a non-genuine part or replace the speakers with an non-genuine part, the amplifier may not work. |
Climate
- Press [Climate] on the vehicle settings screen.
|
- Press the desired item.
- [Internal air circulation]: Blocks the flow of outside air into the vehicle cabin.
- [Automatic ventilation]: Switches the ventilation system to fresh air mode automatically after an extended use of recirculate air.
- [Defog/Defrost options]: Directs air to the windshield to reduce moisture on the windshield glass.
- [Climate features]: Activates the convenience functions for climate control.
- [Heating/Ventilation]: Adjusts the options on the seat heating and ventilation.
Seats
- Press [Seats] on the vehicle settings screen.
|
- Press the desired item.
- [Seat position change alert]: When seat position moves, details of the change are shown with a seat image.
- [Seat switch and movement alert]: Details of the seat switch control and position change are shown with a seat image.
- [Heating/Ventilation]: Sets [Auto. Controls That Use Climate control Settings] or [Seat Heater Balance].
- [Seating Easy Access]: Sets [Easy steering access], [Driver Seat Easy Access], [Passenger Seat Easy Access].
- [Ergo-Motion Seat]: Sets [Comfortable Stretch], [Alertness Assist], [Smart Posture Assist], [Smart Support].
Lights
- Press [Lights] on the vehicle settings screen.
|
- Press the desired item.
- [Ambient light]: Sets the interior mood lighting.
- [One touch turn indicator]: Select the number of blinks of turn signal by touching the turn signal lever.
- [Intelligent High Beams]: Select the vehicle speed at which the feature activates, or set to disable the feature.
- [Head lamp delay]: When the engine is turned off, the rear and head lights stay on for about 15 seconds.
- [Travel mode]: Reduces the headlight range to prevent glare for oncoming cars within countries with opposing driving directions.
- [HBA (High Beam Assist)]: Assists in reducing the high beam glare which affects drivers in oncoming vehicles.

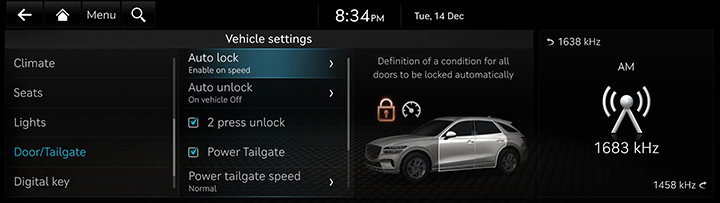

Door/Tailgate
- Press [Door/Tailgate] on the vehicle settings screen.
|
- Press the desired item.
- [Auto lock]: Select the timing for automatic locking all doors.
- [Auto unlock]: Select the timing for automatic unlocking all doors.
- [2 press unlock]: Press door unlock button of the key to unlock all doors.
- [Power Tailgate]: The power tailgate button can be used to automatically open/close the liftgate.
- [Power tailgate speed]: Selects the speed the power tailgate automatically moves.
- [Power Tailgate height]: Selects the height the power tailgate automatically moves.
- [Smart Tailgate]: Opens the liftgate automatically when approaching the tailgate with the smart key.

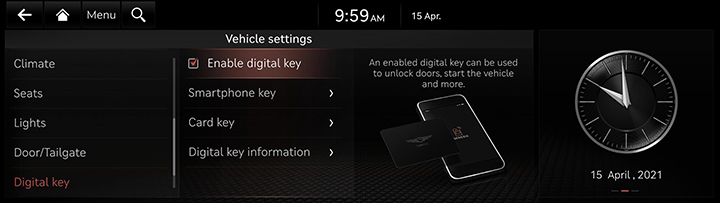

Digital Key
- Press [Digital key] on the vehicle settings screen.
|
- Press the desired item.
- [Enable digital key]: Unlocks doors and turn vehicle on using a digital key.
- [Smartphone key]/[Card key]: Saves or deletes smartphone key or card key.
- [Digital key information]: Shows the serial number of the digital key.

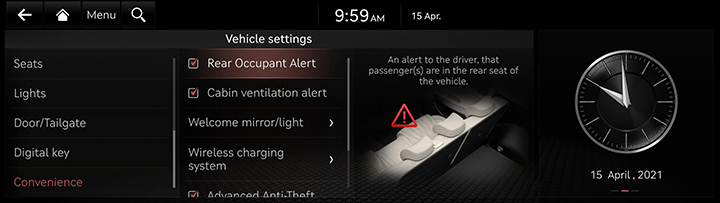

Convenience
- Press [Convenience] on the vehicle settings screen.
|
- Press the desired item.
- [Rear Occupant Alert]: Provides an alert to the driver that passengers are in the rear seat of the vehicle.
- [Cabin ventilation alert]: Provides an alert if abnormal temperature or air quality is detected when the driver stays in the parked vehicle for more than an hour.
- [Welcome mirror/light]: Sets the welcome mirror or light offered when you approach with the smart key or the door is unlocked.
- [Wireless charging system]: Enables the wireless charging pad to be used with compatible devices.
- [Advanced Anti-Theft]: Provides an alert when movement is detected in the passenger compartment after the vehicle is locked.
- [Auto rear wiper (reverse)]: Activates the rear windshield wiper automatically when the front wiper in On and the gear is in reverse.
