Name and Function of each Component

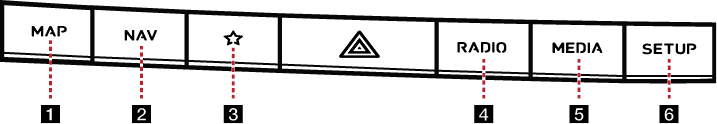

Head Unit

The image of this product may be different from the actual product.

1 MAP button

• Moves to map screen. showing the current position of vehicle.
• When the destination is set, the voice navigation starts on map screen.

2 NAV button

• Moves to navigation menu.
• Press and hold to move to the destination search screen.

3 K (User) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

4 RADIO button

• Activates radio mode.
• Each button press changes the mode in sequence of DAB/FM > AM > DAB/FM.

5 MEDIA button

• Press this button to switch between the media selection screen and media play screen.
• Press and hold to move to the media selection screen.

6 SETUP button

• Moves to settings screen.
• Press and hold to move to the SW info / update screen.

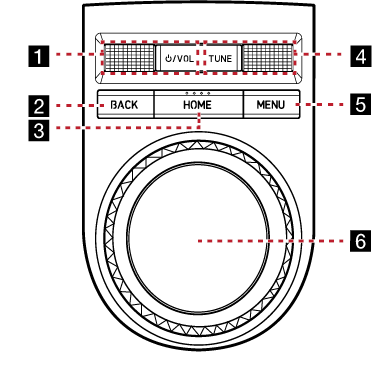

Front Seat Control Key

The image of this product may be different from the actual product.

1 :/VOL wheel button

• Press briefly to turn AV on/off.
• Press and hold to turn on or off the display.
• Turn the wheel up/down to adjust the volume.

2 BACK button

• Press briefly to move to the previous screen.
• Press and hold to go to the home screen.

3 HOME button

• Press briefly to go to the home screen.
• Press and hold to go to the map screen.

4 TUNE wheel button

• Radio (DAB/FM): Turning the wheel up/down to change the searched station.
• Radio (AM): Turning the wheel up/down to increases/decreases the frequency by one step.
• USB/Sounds of nature/Voice memo/Bluetooth audio: Search for a file by turning the wheel up/down. And, when the name of desired file is displayed, press the button to play the file.
• Navigation: Turn up/down to change the map scale on the map screen.

5 MENU button

• Displays a pop-up menu for each mode when pressed briefly.
• Turns on and off the split screen on the map when pressed and held.

6 Controller

• Use controller to move and select the menu.
• Use controller to change the map scale on the map screen.

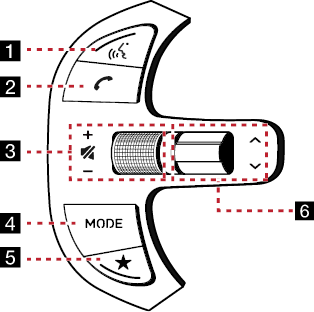

Steering wheel remote control

The image of this product may be different from the actual product.

1 i (Voice Recognition) button

Activates voice recognition mode of the connected phone projection device. Press again to end the voice recognition mode.

2 W (Bluetooth Call) button

When it is pressed shortly

• Searches new Bluetooth phone or connects the registered phone if Bluetooth is not connected.
• If Bluetooth is connected,
• If selected in the call waiting screen, displays call history screen.
• If selected in call history screen, makes a call to last called number.
• If selected in phone entrance screen, enters the last call number.
• If selected in phone reception alert screen, answers the phone call.
• If selected in calling, ends the call.

When it is pressed and held

• When Bluetooth is connected, if selected in Bluetooth hands-free waiting mode, Redials.
• If selected in calling, ends the call.

3 J / I button

Turn the wheel up/down to adjust the volume.

f (MUTE) button

Press the wheel to turn mute on/off.

4 MODE button

• When it is pressed shortly
• Selects a mode from DAB/FM, AM, USB music, USB video, Sounds of nature, Phone projection or Bluetooth audio.
• When it is pressed and held
• Moves to the mode button (Steering wheel) settings screen.

5 L (User) button

• User may select and use a desired feature with this button.
• Press and hold to move to the custom button settings screen.

6 S/W button

• When it is pressed shortly
• Selects a preset radio station in AM mode.
• In MEDIA mode, searches track, file or chapter.
• When it is pressed and held
• In AM mode, broadcasting are automatically searched.
• While USB or Sounds of nature mode activated, rewinds or fast forwards the file.
