Climate

The images may differ from the actual components.

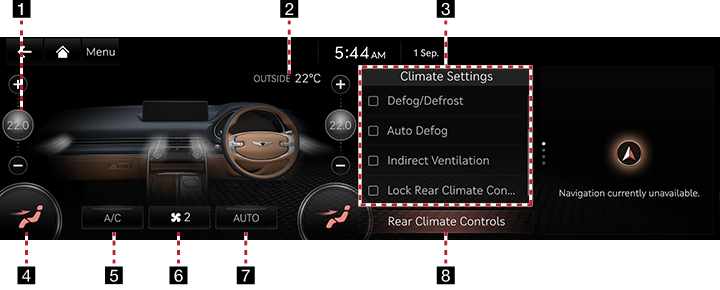

Operating Climate

Press [Climate] on the home screen.

1 Front seat set temperature

It sets the set temperature of the front seat.

2 Outside temperature

It displays the current temperature outside the vehicle.

3 Activate upon washer fluid use

Automatically prevents the washer fluid scent from entering the cabin.

Recirculation mode plus

Uses navigation information to prevent unpleasant gases and odors from entering the vehicle at known locations.

Auto dehumidify

Automatically switches to fresh air ventilation to decrease humidity after an extended use of air recirculation.

Smart Ventilation

When the climate control system is off, fresh air ventilation is activated automatically to maintain good cabin air quality.

Defog/Defrost

Sets the DEF button so that it increases fan speed, switches to fresh air, activates A/C, and directs air to the windshield to clear it.

Auto defog

Automatically activates various defog functions based on the level of humidity in the vehicle cabin.

Indirect ventilation

Cools the cabin using a three-dimensional, diffuse air flow.

4 Blower position

Changes the seat blower position to up/down.

5 A/C

When the A/C is active, air conditioner is operated for vehicle cooling.

6Blower level

It displays the set blower level.

7 AUTO

The air cooling and heating are automatically activated according to the set temperature.

8 Rear climate controls

It sets the air conditioning temperature and air volume operating in the rear seats.

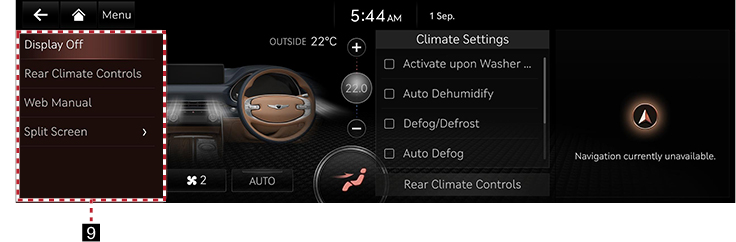

9 Display off

Turns off the screen.

Front climate controls/rear climate controls

It sets the air conditioning temperature and air volume operating in the front/rear seats.

Web manual

Displays the QR code for the manual of corresponding function.

Split screen

Displays split screen selection menu.

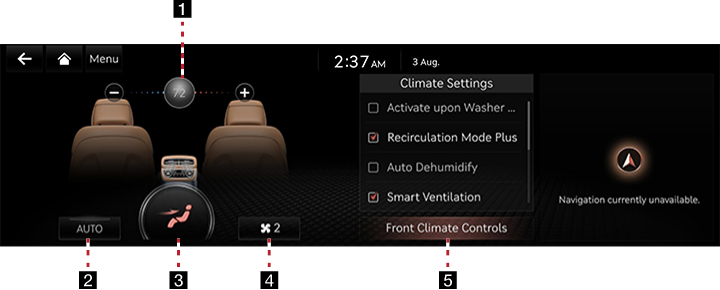

Controlling Rear Seat Climate

Powers on or off of the climate device of rear seat.

Press [Rear Climate Controls] on the climate screen.

1 Rear seat set temperature

It sets the set temperature of the rear seat.

2 AUTO

The air cooling and heating are automatically activated according to the set temperature.

3 Blower position

Changes the seat blower position to up/down.

4 Blower level

It displays the set blower level.

5 Front climate controls

It sets the air conditioning temperature and air volume operating in the front seats.
