Device connection Settings

The images displayed on this system may differ from actual ones.

Move to Device connection setting screen

Press [Setup] > [Device Connection] on the HOME screen. Device Connection setting screen is displayed.

device connection

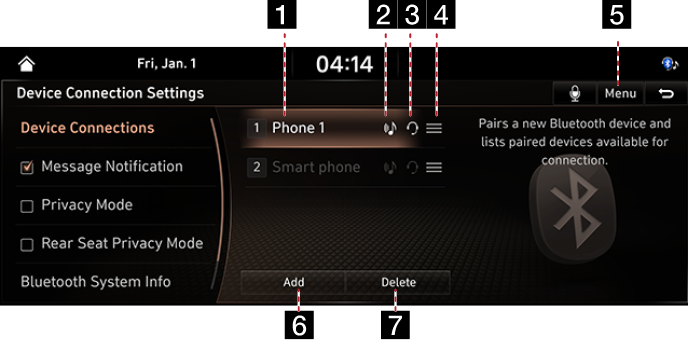

On the device connection settings screen, press the [Device Connection].

1 Registered device list

Displays the paired Bluetooth device list. When selecting from the list, the device is either connected or disconnected.

2 Bluetooth audio connection status

When Bluetooth audio is connected, icon is activated.

3 Bluetooth hands-free connection status

When Bluetooth hands-free is connected, icon is activated.

4 Auto connection priority

Press and hold to arrange it in the desired position.

5 Menu

It displays Bluetooth connection menu.

6 Add

Registers a new Bluetooth device.

7 Delete

Deletes the registered Bluetooth devices.

Message Notification

The function of Message Notification can turn on or off.

On the device connection settings screen, turn [Message Notification] on or off.

,Reference

Depending on the model of the connected Bluetooth device, this function may not be supported.

Predefined Message

You can view and edit registered reply messages.

1. Press [Predefined Message] on the device connection settings screen.

2. Press [Replies to Text] or [Rejected Call Replies].

• [Replies to Text]:Select registered automatic reply message and to edit contents.
• [Rejected Call Replies]:Select registered call rejection message and to edit contents.

3. To send after completing contents of text, press [9].

,Reference

Depending on the model of the connected Bluetooth device, [Predefined Message] function may not be supported.

Privacy Mode

It sets privacy mode to protect personal information.

On the device connection settings screen, turn [Privacy Mode] on or off.

,Reference

You can turn [Menu] > [Privacy Mode] on or off in the phone screen.

Rear Seat Privacy Mode (If equipped)

Sets the rear seat privacy mode to protect the privacy of the back seat occupants.

On the device connection settings screen, turn [Rear Seat Privacy Mode] on or off.

Bluetooth System Info

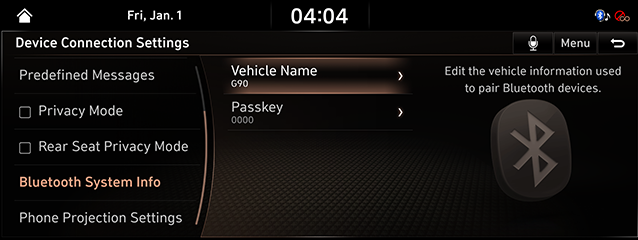

1. On the device connection settings screen, press the [Bluetooth System Info].

2. Press the desired item.

• [Vehicle Name]: Changes the Bluetooth device name of the vehicle.
• [Passkey]: Changes the passkey required to connect a Bluetooth device to the car.

Phone projection settings

Use an approved USB cable to connect phone projection settings.

1. On the device connection settings screen, press the [Phone Projection Settings].

2. Set the phone projection supported phone you want to connect.
