Climate

Operating Climate

Press [] or [HOME] > [Climate].

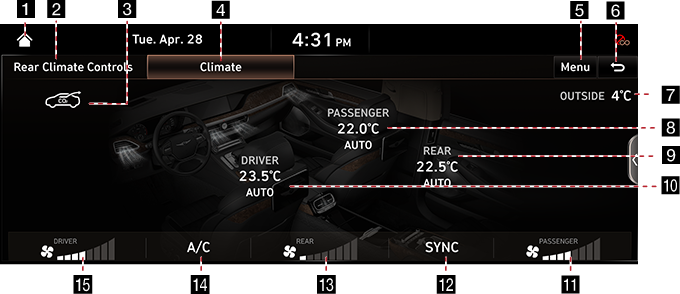

<Climate Screen>

1

Switches to HOME Screen.

2 Rear Climate Controls

Switches to Rear Climate Controls Screen.

3 Climate

Switches to Climate Screen.

4 (CO2 Warning)

Improves indoor comfort by controlling CO2 concentration in the vehicle interior.

5 Menu

Shows Climate Menu.

6 g

Switches to HOME or the previous screen.

7 Outside Temperature

It displays the current temperature outside the vehicle.

8 Front Passenger Seat Set Temperature

It displays the set temperature of the front passenger seat.

9 Rear Seat Setting Temperature

Shows the set temperature of rear seat.

10 Driver Seat Set Temperature:

It displays the set driver seat temperature.

11 Front passenger seat set blower level

It displays the set blower level of the front passenger seat.

12 SYNC

When the SYNC is active, front passenger seat set temperature is set based on driver seat set temperature.

13 Rear seat set blower level

It displays the set blower level of the rear seat.

14 A/C

When the A/C is active, air conditioner is operated for vehicle cooling.

15 Driver seat set blower level

It displays the set blower level of the driver seat.

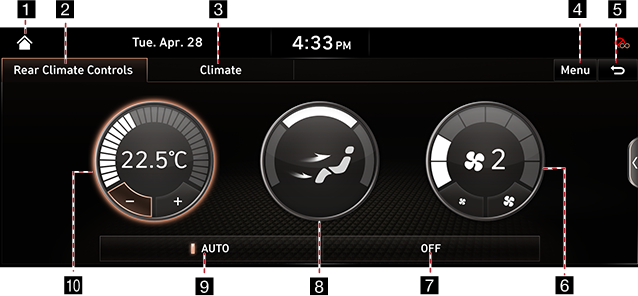

Controlling Rear Seat Climate

Powers on or off of the climate device of rear seat.

Press [Rear Climate Controls] on Climate Screen.

1

Switches to HOME Screen.

2 Rear Climate Controls

Switches to Rear Climate Controls Screen.

3 Climate

Switches to Climate Screen.

4 Menu

Shows Rear Seat Climate Menu.

5 g

Switches to HOME or the previous screen.

6 Blower Level

It displays the set blower level.

7 OFF

Turns the power of rear seat climate device off.

8 Blower Direction

Shows the set direction of wind.

9 AUTO

It is displayed when Auto button is selected, and blower level and air conditioner/heater are automatically operated based on the set temperature.

10 Rear Seat Setting Temperature

Shows the set temperature of rear seat.

Climate Menu

Press [Menu] on Climate screen.

Smart Ventilation

When humidity and carbon dioxide levels inside the car increase while climate control is turned off, air is automatically expelled to maintain a comfortable environment.

Auto Defog

The air conditioner is automatically operated to create a flow of air to clear the windscreen.

Active Carbon Dioxide Monitor - Option

Controls carbon dioxide concentration in the vehicle, improving freshness.

Rear climate control

It moves to the Rear climate control screen.

Help

It moves to the Help screen.

Web manual

Displays the QR code for the manual of corresponding function.
