Voice Memo

Voice Memo Screen Composition

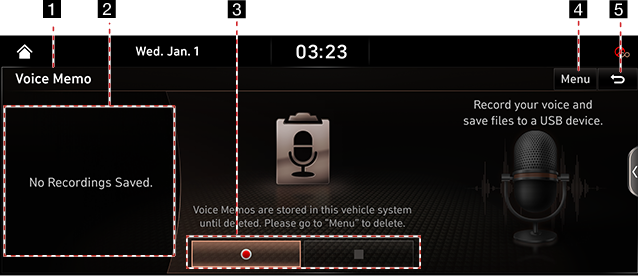

Voice Memo General Screen Composition

1 Mode Display

It displays currently running mode.

2 Voice Memo List

It displays Voice Memo List.

3 Voice Memo Control Panel

It controls the functions of Start/Pause, End and Save of Voice Memo.

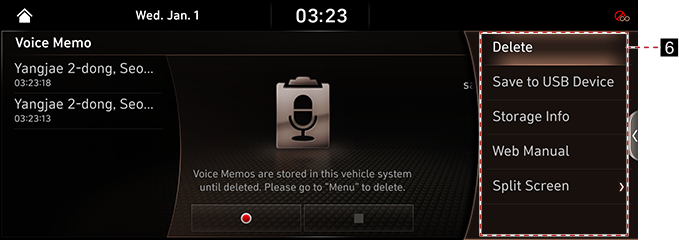

4 Menu

It displays Voice Memo Menu.

5 g

It moves to Home Screen or a previous screen.

6 Delete

It moves to the screen where you can delete a Voice Memo saved in the file list.

Save to USB Device

It moves to the screen where you can save a Voice Memo saved in the file list to USB.

Storage Info

It moves to the screen where you can check Storage Space Information.

Web Manual

Displays the QR code for the manual of corresponding function.

Split Screen

Displays Split Screen Selection Menu.

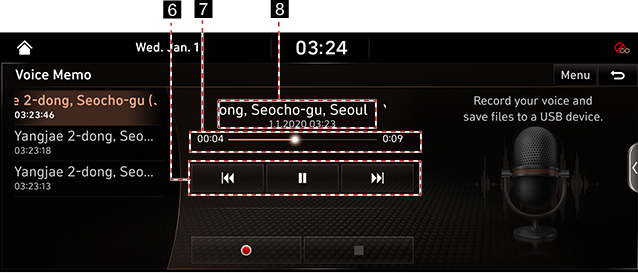

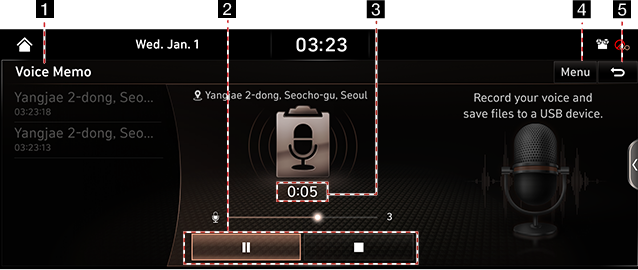

Voice Memo Recording and Playback Screen Composition

1 Mode Display

It displays currently running mode.

2 Voice Memo Control Panel

It controls the functions of Start/Pause, End and Save of Voice Memo.

3 Recording Time Display

It displays current Recording Time.

4 Menu

It displays Voice Memo Menu.

5 g

It moves to Home Screen or a previous screen.

6 Voice Memo Playback Control Panel

It controls the functions of Playback/Pause, Search, and etc.

7 Playback Time/Progress Bar

It displays Playback Time Information. When you drag or select a desired part in the progress bar, the voice memo for that part is played.

8 Playback File Information

It displays the start date/time of the recording of the voice memo being played.

Creating a Voice Memo

Getting Started with Voice Memo

1. Press [Voice Memo] on the Home Screen.

2. Press [] on Voice Memo Screen.
3. Create a voice recording.

Pausing Voice Memo

Press [M] among Voice Memo.

Ending and Saving of Voice Memo

Press [Z] on the Voice Memo Screen or press [] button on the Steering Wheel Remote Control.

,Reference

All the sounds from this unit will not be output while the Voice Memo is operating. Voice Memo pauses when you receive a Bluetooth phone call while the Voice Memo is operating. It is located at the top of the Voice Memo List in the form of 'VoiceMemo0001 ~ VoiceMemo6000'. When the storage space is full during a Voice Memo, the Voice Memo is automatically saved and ends

Running Voice Memo

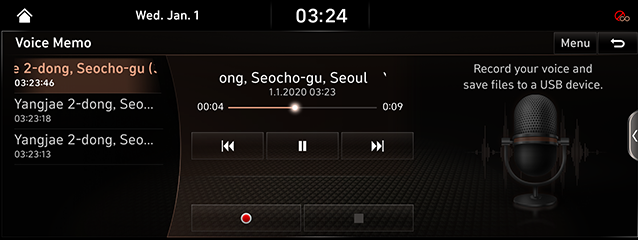

Playback and Pause of Voice Memo

1. Select the Voice Memo you want to play in the Voice Memo List The relevant Voice Memo is played.

2. Press [M] to pause the playback of a Voice Memo.
3. Press [d] to resume the playback while a Voice Memo is paused.

Playing previous/next Voice Memo

Location	Detailed Explanation
Front Screen	Touch [C/V].
Rear Seat	Press [A SEEK D] button.

Forward/Backward Search

Quickly searching for the file being played.

Location	Detailed Explanation
Front Screen	Touch and hold [C/V], and release it to play the part.
Rear Seat control key	Press and hold [A SEEK D] button and release it to play the part.

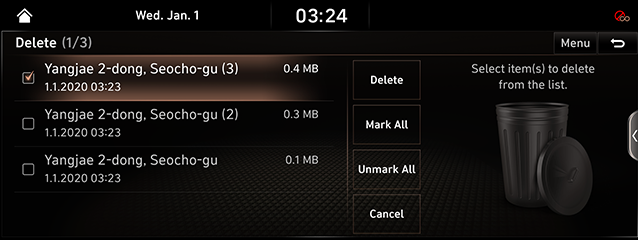

Deleting Voice Memo

1. Press [Menu] > [Delete] on the Voice Memo Screen.

2. Select the desired item, and then press [Delete].

• Press [Mark All] to select all the items.
• Press [Unmark All] to unmark all the items.
• Press [Cancel] to cancel the deletion.

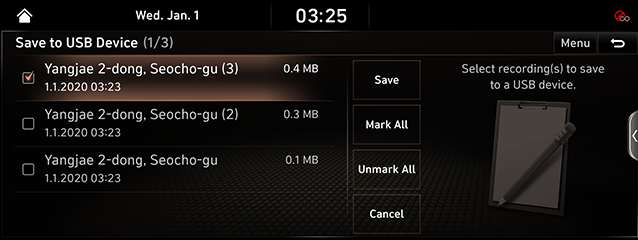

Saving a Voice Memo to USB

1. Connect USB to the USB port.
2. Press [Menu] > [Save to USB Device] on the Voice Memo Screen.

3. Press a desired item, and then press [Save].

• Press [Mark All] to select all the items.
• Press [Unmark All] to unmark all the items.
• Press [Cancel] to cancel.

,Reference

It can be saved to a USB memory formatted with FAT 16/32 or exFAT/NTFS. When saved to USB, a Voice Memo is copied to "VoiceMemo" folder and saved.
