Setting Destinations for Navigation

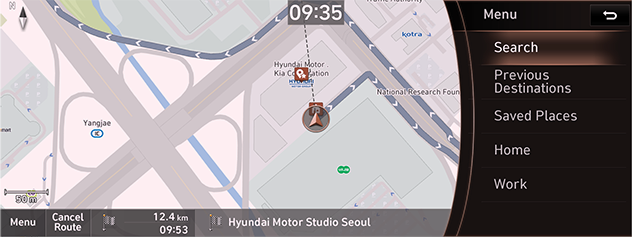

Destination Search Screen

Press [Menu] > [Destination] on the map screen.

Search

The search results by the complete name or initial, phone number or address are specified on Map.

Previous Destination

A destination is searched by [Freq.Visited Points], [Destinations], [Searches].

Saved Places

Searches a destination registered in Address Book Menu.

HOME+/HOME

• Save Home at the Address Book.
• Searches Registered Home as Destination.

WORK+/WORK

• Save Work at the Address Book.
• Searches Registered Work as Destination.

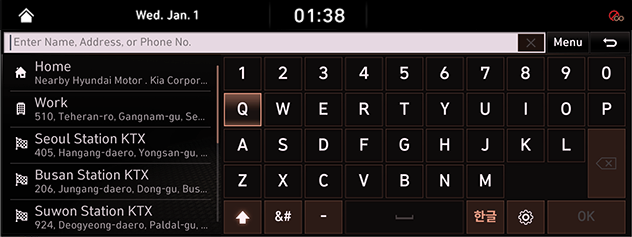

Setting Destinations by Search

Sets a destination by entering the full name or initial, phone number or address.

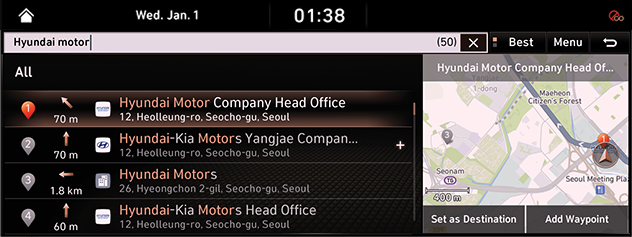

1. Press [Menu] > [Destination] > [Search] on the map screen.

2. Press [OK] after entering the desired the name of destination.

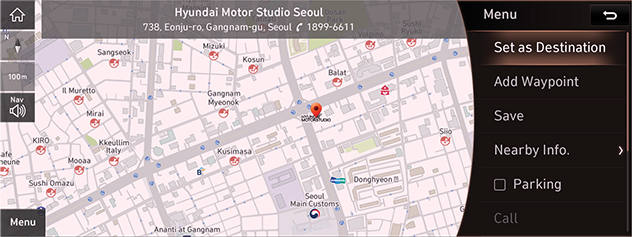

3. Select the desired item after pressing the desired location in the list.

• [Set as Destination]: Sets the destination.
• [Add as Waypoint]: Adds waypoint after setting destination.
• [Save]: Adds frequently used address to the address book menu. Press [Menu] > [Destination] > [Saved Places] on the map screen to check the registered location.
• [Nearby Info.]: Sets to display the POI Category on the map screen.
• [Parking]: Displays the parking lot around the destination.
• [Information]: Displays the detailed information on the destination.
• [Call]: Makes a phone call. If no phone number is saved or Bluetooth is not connected, the call is not available.
• [Display Off]: Turns off the screen.
• [Web Manual]: Displays the QR code for the manual of corresponding function.
• [Split Screen]: Displays Split Screen Selection Menu.

4. Press [Set as Destination].

5. Press a desired route.
6. Start guidance.

,Reference

When the destination is not set, press [h] at the bottom of the map screen to move to search screen.

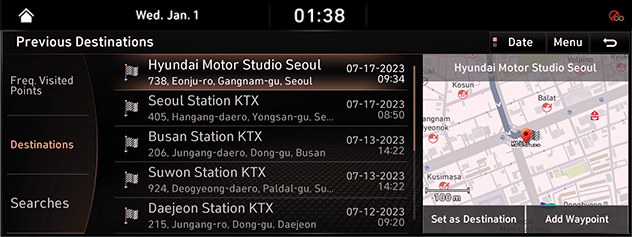

Setting Destinations by Previous Destinations

Sets the destination to the previous destination.

1. Press [Menu] > [Destination] > [Previous Destinations] on the map screen.

2. Press the desired location in the list.

• [Freq.Visited Points]: Shows frequently visited destinations.
• [Destinations]: Shows locations recently set as destinations.
• [Searches]: Shows recently searched locations.

3. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

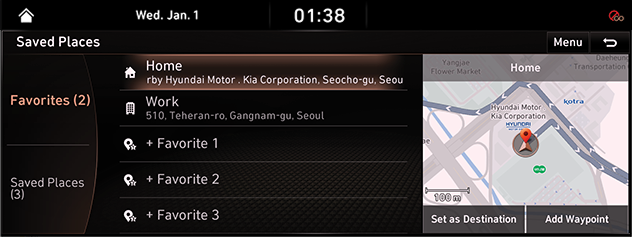

Setting Destinations by Address Book

Sets the location registered in the address book as the destination.

1. Press [Menu] > [Destination] > [Saved Places] on the map screen.

2. Press the desired location in the list.
3. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

Setting Destination with Home/Work

Sets the location saved under Home/Work as the destination.

1. Press [Menu] > [Destination] > [Home] or [Work] on the map screen.

2. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

Setting Destinations by Address Search

Destinations can be set easily through address searches in various forms.

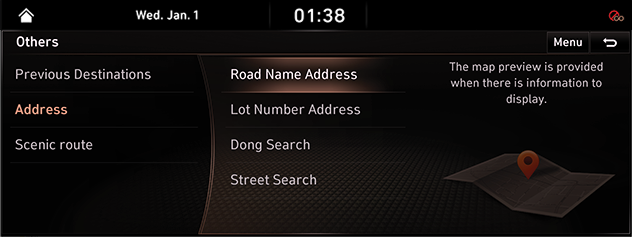

Press [Navigation] > [Others] > [Address] on the home screen.

• [New Address]: Sets the destination with the street address.
• [Old Address]: Sets the destination with the location address.
• [Dong Search]: Sets the destination via searching the village name.
• [Street Search]: Sets the destination via searching the street name.

Address Search by Street Name

1. Press [New Address] on Address Screen.

2. Press State > City > Street. Page switch is available by using quick scroll at the right side. Press initials of the area name. (Press “S” for Seoul.)

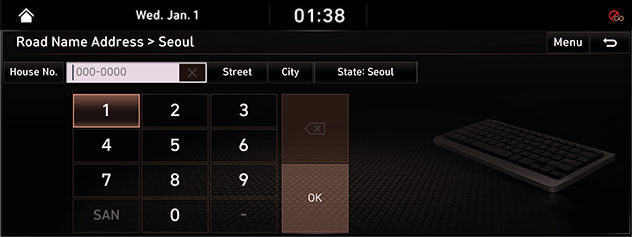

3. Press House No. and [OK].
4. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

,Reference

If [OK] is pressed without entering a building no., the representative location in the corresponding area is displayed. If a partial number of building is entered, various buildings are displayed. Select a desired item.

Search by Location Address

1. Press [Old Address] on Address Screen.

2. Press State > City > Dong/Ri. Page switch is available by using quick scroll at the right side. Press initials of the area name. (Press “S” for Seoul.)
3. Press House No. and [OK].
4. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

,Reference

If [OK] is pressed without entering a building no., the representative location in the corresponding area is displayed. If a partial number of building is entered, various buildings are displayed. Press a desired location address.

Search by Village

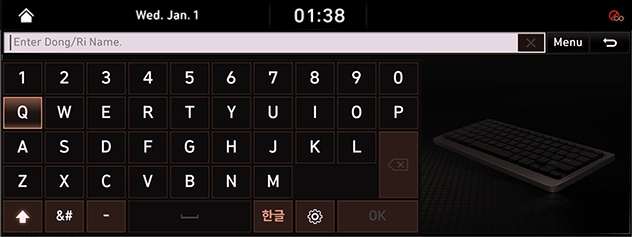

1. Press [Dong Search] on Address Screen.

2. Press the Dong name and [4].
3. Select a desired list.
4. Press the building no. and [OK].
5. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

,Reference

If [OK] is pressed without entering a building no., the representative location in the corresponding area is displayed. If a partial number of building is entered, various buildings are displayed. Press a desired location address.

Search by Street Name

1. Press [Street Search] on Address Screen.

2. Press the Street name and [4].
3. Select a desired list.
4. Press the building no. and [OK].
5. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

,Reference

If [OK] is pressed without entering a building no., the representative location in the corresponding area is displayed. If a partial number of building is entered, various buildings are displayed. Select a desired item.

Setting Destinations by POI

Sets the destination through various facility categories.

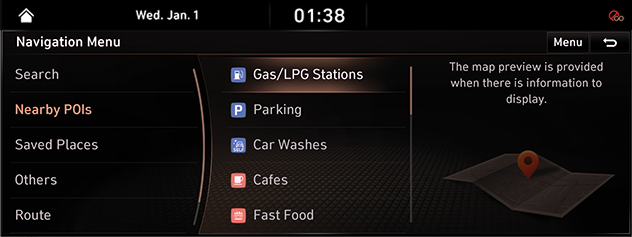

1. Press [Navigation Menu] > [Nearby POIs] on the home screen.

2. Press a desired item.

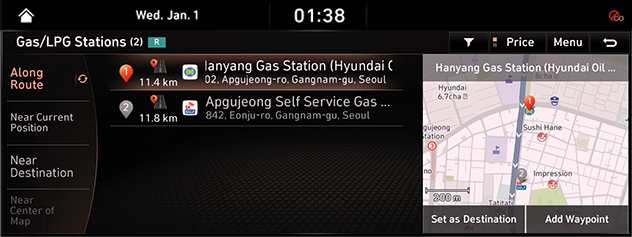

• [Along Route]: Facility search in neighboring area of route.
• [Near Current Position]: Facility search in neighboring area of the current vehicle location.
• [Near Destination]: Facility search in neighboring area of destination or waypoint.
• [Near Center of Map]: Facility search in neighboring area of selected location.

3. Select a desired list.
4. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

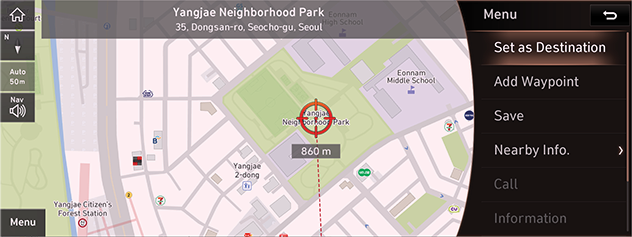

Setting Destinations via Scroll

Sets a destination on the currently displayed map.

1. Select a desired location or push touchpad to up/down/left/right on the map screen. The location is specified at the center of map.

2. Press [Menu].

3. Reference Step 4-6 of "Setting Destinations by Search" for follow-up actions.

,Reference

If the map is moved by scroll, the map is fixed and not moving even when the vehicle moves. Press [MAP] on the head unit switches the map to the current position. However, the automatic return is set as Navigation Settings > [Nav. Auto. Features] > [Auto Re-center Map], the map is automatically switched to the current position after a certain time period. When the map is moved by scrolling, the location name is specified at the top of screen.
