Climate

The images may differ from the actual components.

Operating Climate

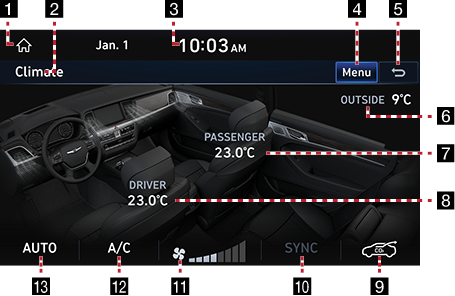

Press [Climate] on the HOME Screen.

1 1

Move to Home Screen.

2 Mode Display

It displays the currently running mode.

3 Current Time

Move to Date/Time Settings Screen.

4 Menu

It displays Climate Menu.

5 g

Move to Home screen or previous screen.

6 Outside Temperature

It displays the current temperature outside the vehicle.

7 Front Passenger Seat Set Temperature

It displays the set temperature of the front passenger seat.

8 Driver Seat Set Temperature

It displays the set driver seat temperature.

9 Indoor CO2

It is displayed when excessive indoor CO2 is detected.

10 SYNC

When SYNC button is selected on the center fascia, front passenger seat temperature is set based on driver seat.

11Blower Level

It displays the set blower level.

12 A/C

It is displayed when A/C button is selected on the center fascia, and air conditioner is operated for vehicle cooling.

13AUTO

It is displayed when Auto button is selected on the center fascia, and blower level and air conditioner/heater are automatically operated based on the set temperature.

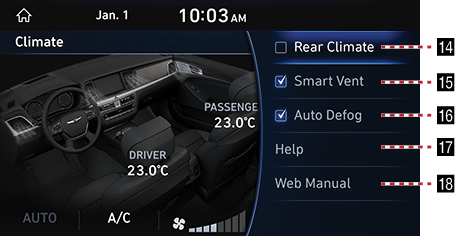

14 Rear Climate

Switches to Rear Sear Climate Control Screen.

15 Smart Vent

When the climate device is off, if the moisture or CO2 increases, automatically the air is exhausted to outside so that the refreshing interior environment is maintained.

16 Auto Defog (ADS)

If fogging occurs on the windshield due to internal / external temperature difference, the air conditioner automatically operates in the direction of the glass to clear the windshield

17 Help

Move to Help Menu Screen.

18 Web Manual

Displays the QR code for the manual of corresponding function.
